- Universal measuring input (thermocouples, thermoresistors or standard signals)
- Input: logic and additional analog input
- Output: relay, transistor OC type, continuous or binary for SSR control,
- Regulation according to the algorithm:
- on / off with hysteresis,
- program regulation - 15 programs with 15 episodes each
-
- valve control (step regulation),

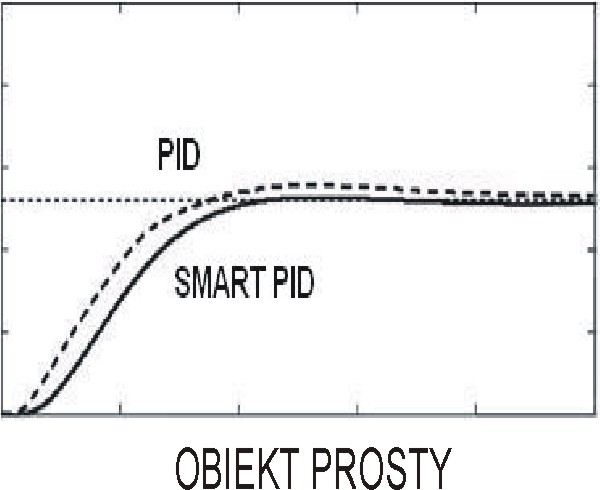

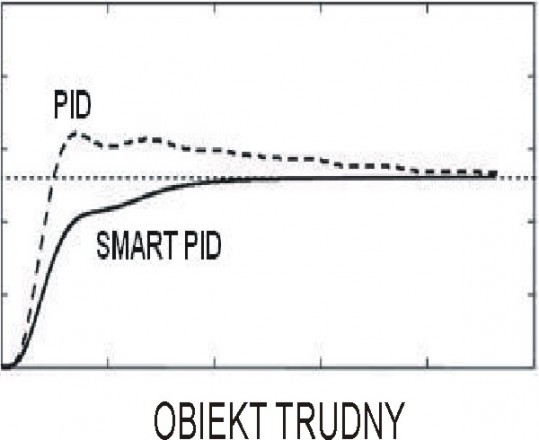

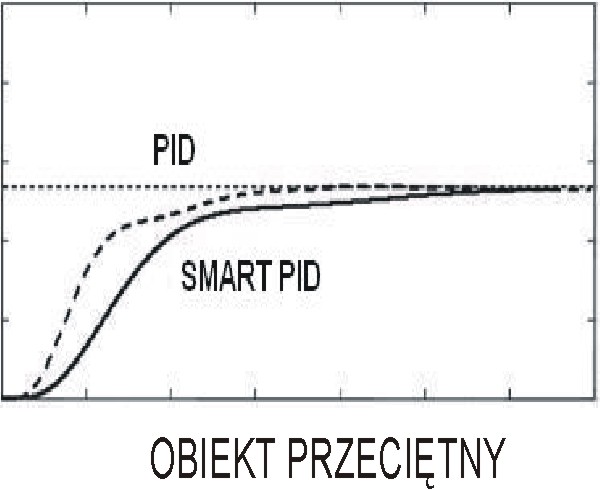

- Automatic selection of PID parameters (according to the new innovative SMART PID technology),
- SMART PID technology is:
- automatic and precise selection of PID settings,
- effective control algorithm,
- convenient and simple solution for technical service,
- no overshoot or small overshoots for a wide class of objects in the process of automatic selection of PID parameters,
- Soft start function,
- Timer function,
- The alarm latch function (LATCH) used in safety regulators,
- Measurement of the heater current and control of heater burnout or short circuit of the control element (e.g. SSR),
- The degree of protection of the housing is IP65,
- Parameter protection with a password,
- Overall dimensions: 48 x 96 x 93mm
Regulator - 4 wyjścia
RE82
The RE82 temperature controller is designed to regulate the temperature in the plastics industry, food industry, drying and wherever it is necessary to stabilize temperature changes.
