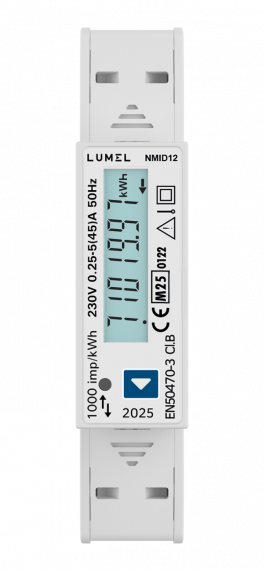

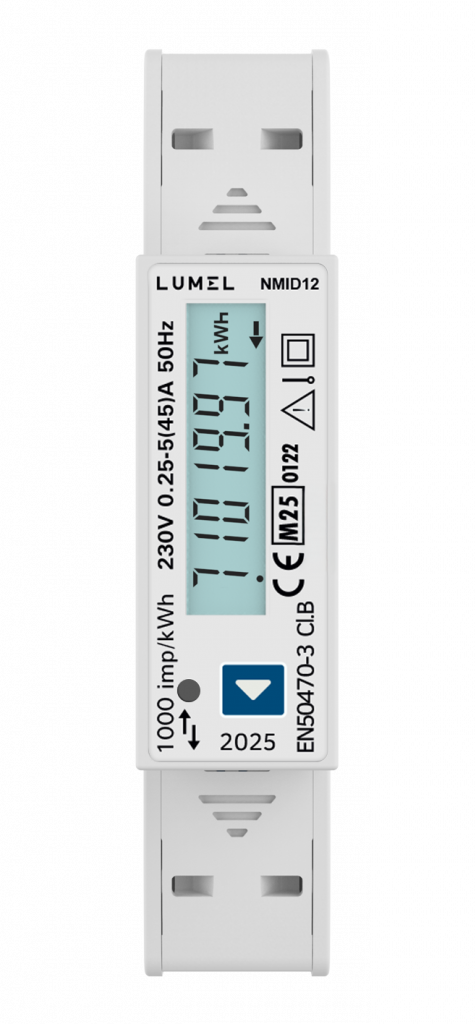

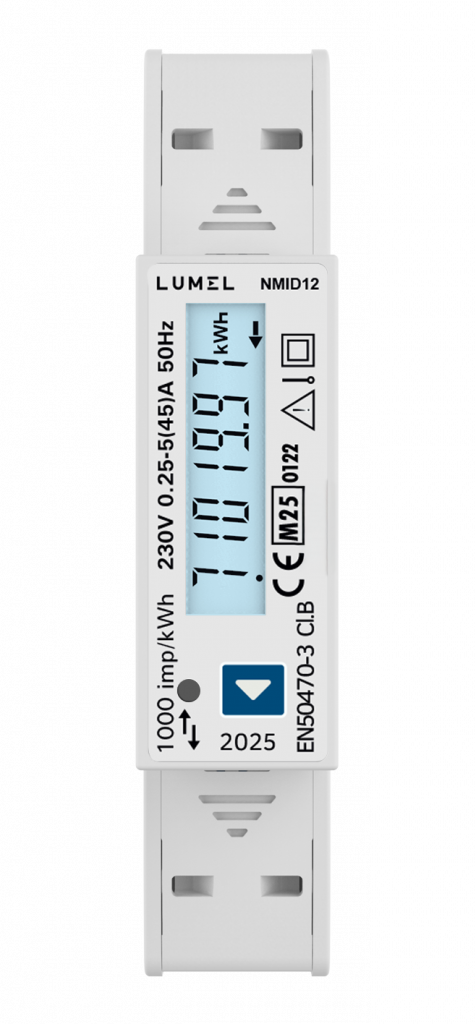

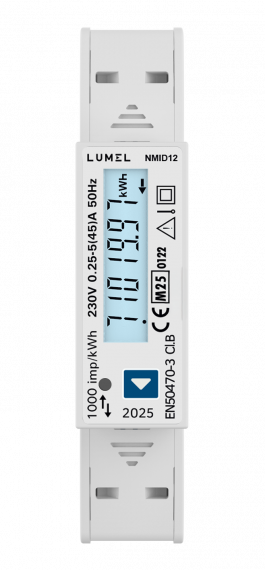

NMID12 is a modern, single-phase electricity energy meter for direct measurement, designed for use in residential buildings, commercial facilities, and light industry. The device enables precise measurement and monitoring of electrical parameters in single-phase networks.
The meter is designed for direct connection to networks with a maximum current of 45 A, without the need for external current transformers (CTs), which simplifies installation and reduces installation costs.
The device enables bidirectional energy measurement (Import / Export) and multi-tariff operation, with tariff selection via digital inputs or remotely through the RS-485 communication interface with Modbus RTU protocol.
Measurement data are presented on a clear, backlit LCD display. The meter is equipped with an S0 pulse output for energy consumption indication and integration with energy monitoring and management systems (EMS/BMS).
The device housing is adapted for mounting on a standard DIN rail, ensuring quick and convenient installation in electrical distribution boards.
