- Three-phase electricity energy meter with direct current measurement, powered directly from the measuring circuit (self-powered)
- True RMS (TRMS) measurement
- 4U wide housing (72 mm)
- LCD display – 1-line, 8-digit seven-segment display for energy value indication
- Accuracy Class: B according to EN 50470-3 (Class 1 according to IEC 62053-21)
- Energy measurement compliant with IEC 62053-21 and IEC 62053-23
- Bidirectional energy measurement: imported/exported.
- Measurement of power and demand parameters:
- active power (imported / exported)
- reactive power (imported / exported)
- apparent power
- current
- Multi-tariff energy metering with data accumulation, selectable via two digital inputs
- Two S0 pulse outputs, configurable for imported and exported energy measurement
- Seal-able terminals (protection against unauthorized access)
- Durable laser markings (identification and product information)

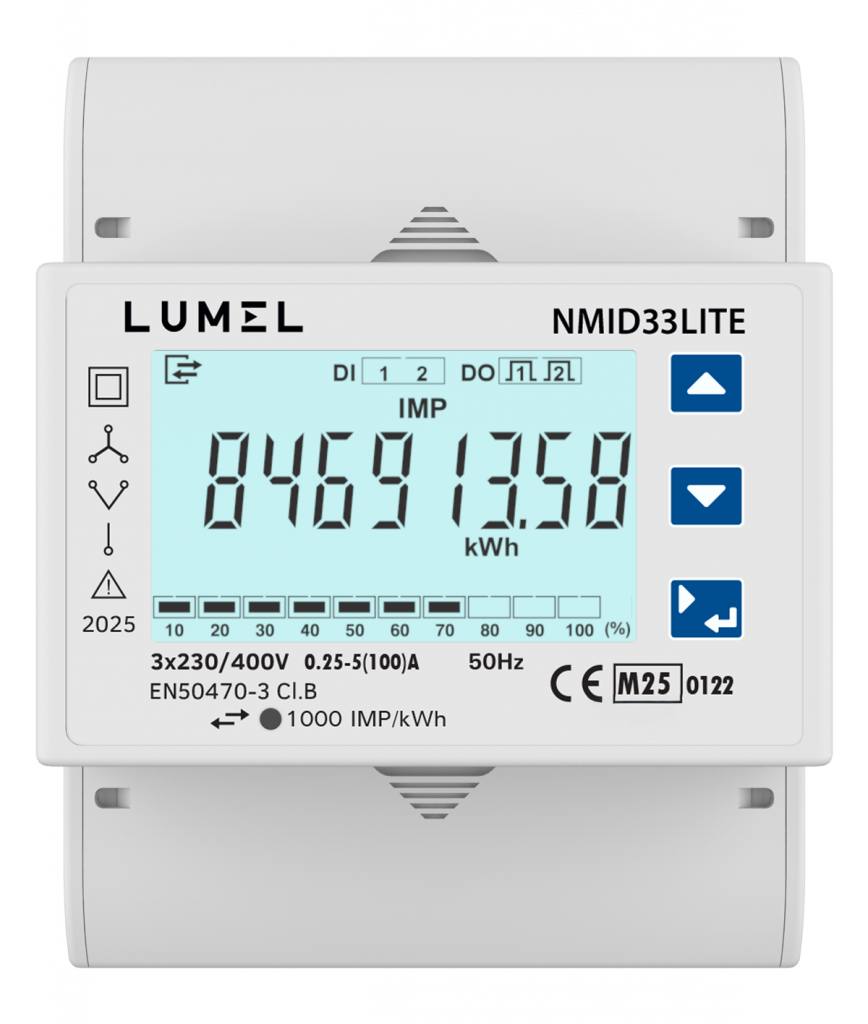

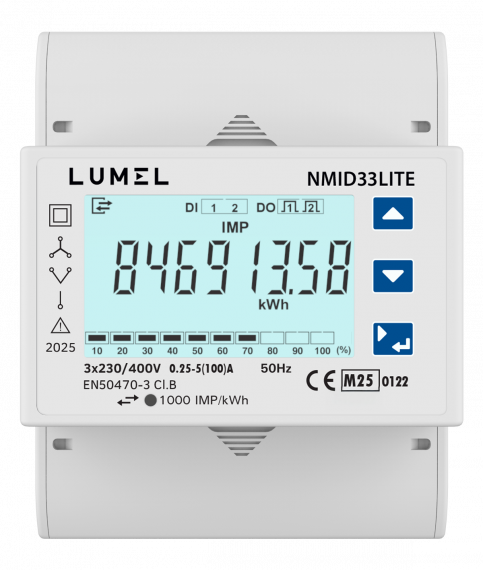

Three-phase MID certified energy meter (up to 100A)
NMID33LITE
NMID33LITE is a modern, three-phase electricity energy meter designed for use in residential buildings, commercial facilities, and light industry. The device enables measurement and monitoring of network parameters in:
-
3-phase 4-wire systems
-
3-phase 3-wire systems
-
1-phase 2-wire systems
The meter enables direct current measurement up to 100 A without the need for current transformers (CTs). It supports up to four energy tariffs, selectable via tariff inputs.
Data are presented on a clear, backlit LCD display, and energy consumption is indicated by a pulse LED. The device housing is adapted for mounting on a standard DIN rail, ensuring quick and convenient installation in electrical distribution boards.
