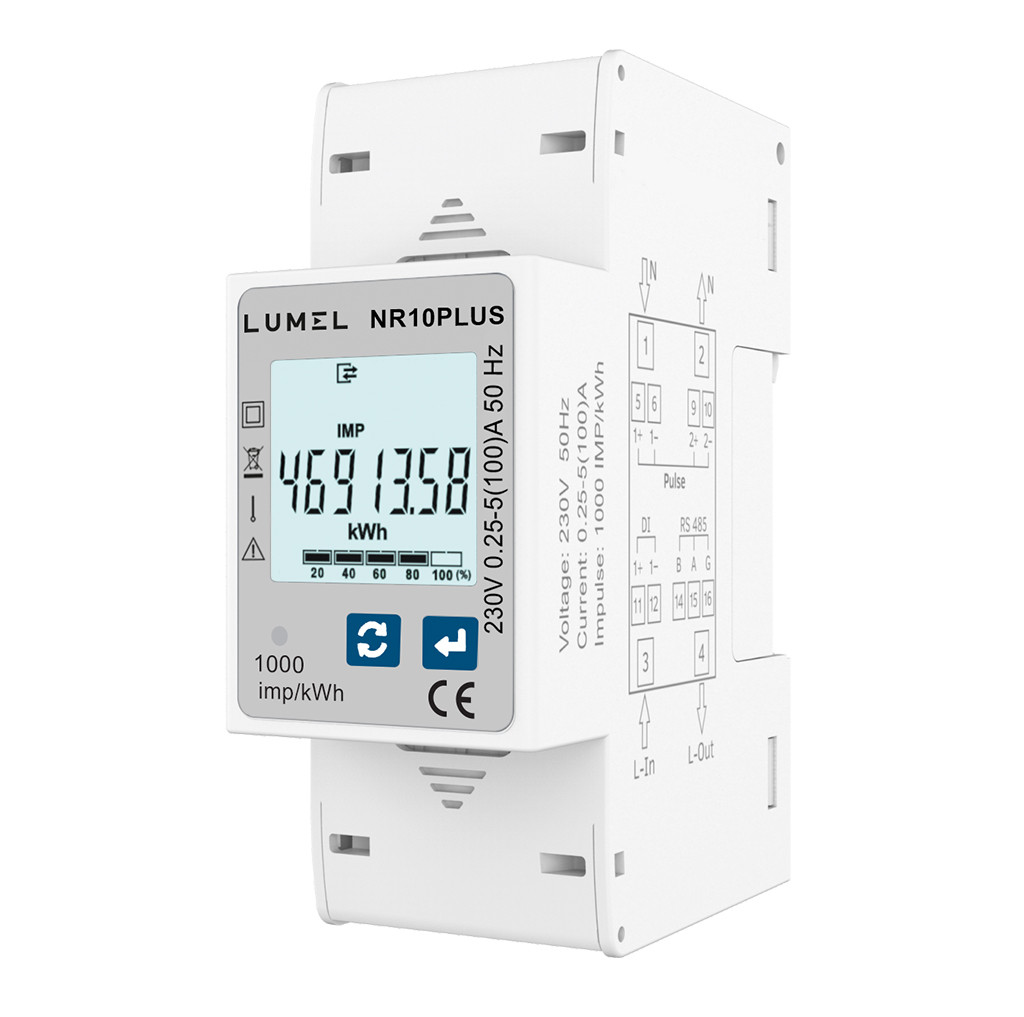

NR10PLUS - 1-PHASE ENERGY METER 100A

NR10PLUS

End of the line

NR10PLUS is a new generation modern design power monitor that will measure and display electrical power quality parameters. It has been engineered to cover most applications (Single Phase network / Built in Pulsed and RS485 Modbus / Import and Export kWh), replacing the need for several different models of this power meter.

Prices / An inquiry

Go to partner zone

The NR10PLUS is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display for different measuring parameters. With built-in 2 pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.

  • Active energy in Class B accuracy (acc. to EN50470-3)
  • Bi-directional measurement IMPORT & EXPORT
  • 100A direct connection
  • Two pulse outputs
  • Two Tariff Counters for energy accumulation selectable via Digital Input or MODBUS
  • RS-485 Modbus
  • DIN rail mounting 35 mm

Parameters

  • Phase to Neutral voltage
  • Frequency
  • Current
  • Current Max Demand
  • kW, kVA & kVAr
  • kW, kVA & kVAr Max Demand
  • Power Factor
  • Import kWh
  • Export kWh
  • Import kVarh
  • Export kVArh
  • Total kWh (Active Energy)
  • Total kVarh (Reactive Energy)
  • Total kVA (Apparent Energy)
