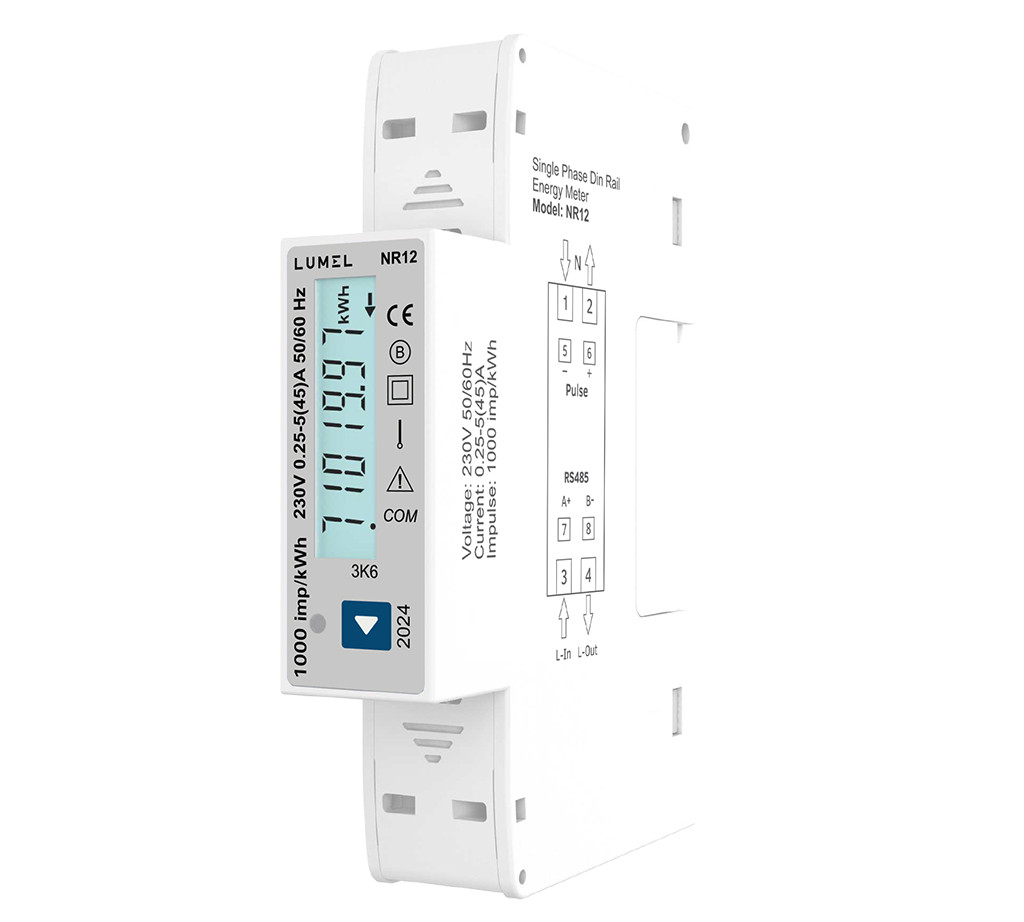

The NR12 is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display for different measuring parameters. With built-in 1 pulsed output and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.
- Active energy in Class B accuracy (acc. to EN50470-3),
- Bi-directional measurement IMPORT & EXPORT,
- 45A direct connection,
- One pulse output,
- Two Tariff Counters for energy accumulation selectable via Modbus,
- RS-485 Modbus,
- DIN rail mounting 35 mm.
Measured parameters:
- Phase to Neutral voltage,
- Frequency,
- Current,
- Current Max Demand,
- kW, kVA & kVAr,
- kW, kVA & kVAr Max Demand,
- Power Factor,
- Import kWh,
- Export kWh,
- Import kVarh,
- Export kVArh,
- Total kWh (Active Energy),
- Total kVarh (Reactive Energy),
- Total kVA (Apparent Energy).
