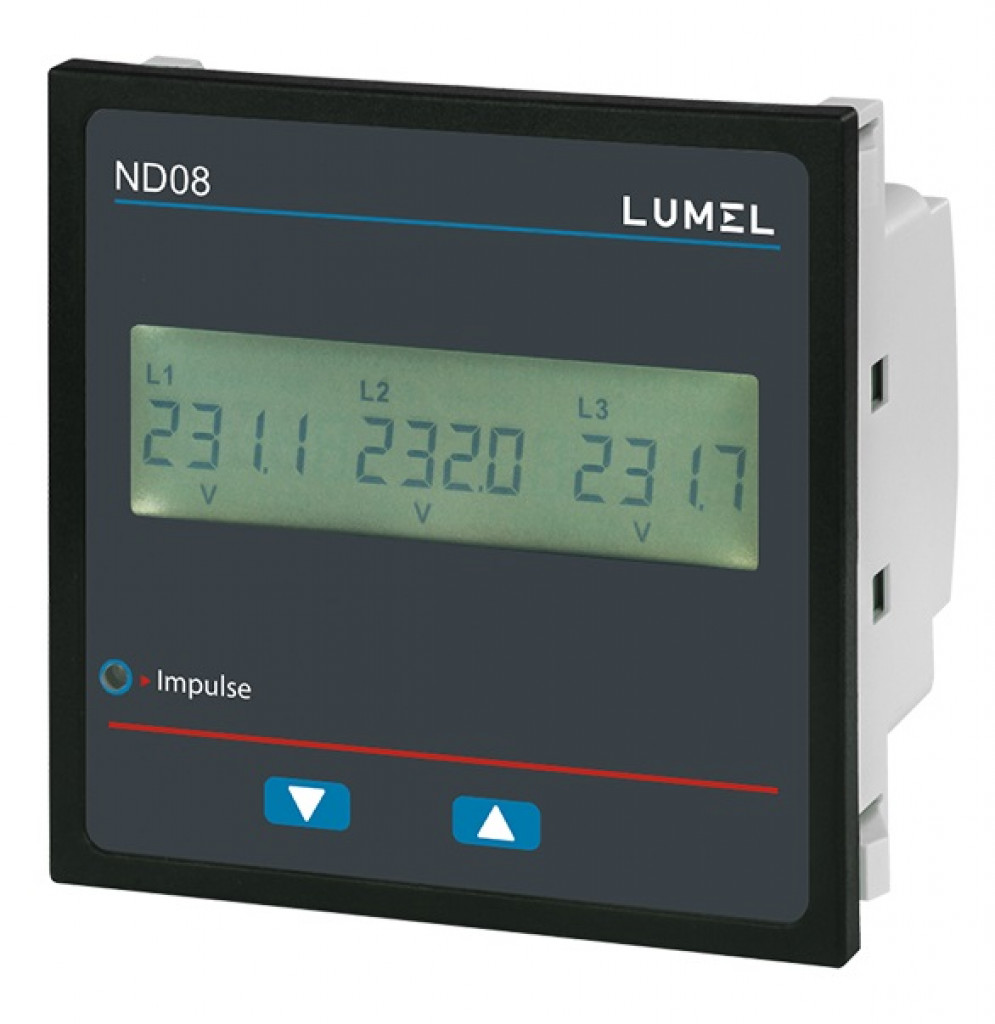

1 and 3-phase power network meter ND08

ND08

End of the line

ND08 meter is destined for the measurement of energy and other power network qualities. The meters can operate in 3-phase networks (3- or 4-wire) or 1-phase networks.

Prices / An inquiry

Go to partner zone

Buy in store
1 and 3-phase power network meter ND08
Characteristic Documentation For designers Certificates
  • True RMS measurement (up to 15th Harmonic).
  • THD measurement (not apply VPS32).
  • On site programmable PT/CT ratios.
  • User selectable type of network: 3phase 3wire or 4wire.
  • LCD Display with Backlight (LCD shows 3 Parameters at a glance).
  • Selected parameters available on the display. All parameters available via RS485 (option).
  • Onsite selection of Auto scroll / Fixed Screen.
  • Parameter screen recall.
  • Accuracy: ±0.5% of nominal value for voltage, current, active power.
