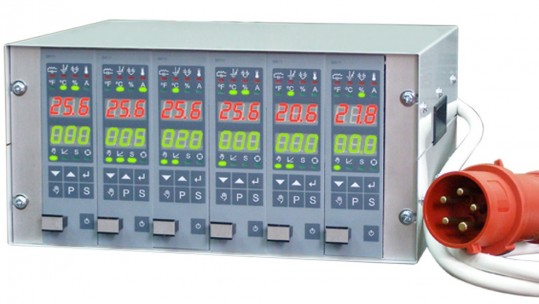

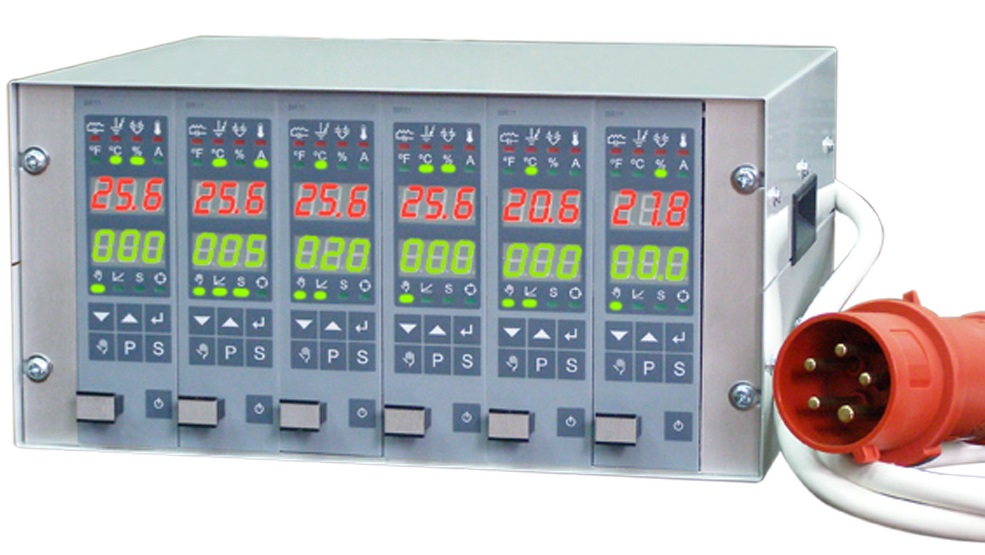

System for injection moulds with heated channels

SR11

The SR11 system is destined for the temperature control in injection moulds with heated channels and for other systems in plastics processing.

  • The system is composed of BR11 controllers and a set of connection cables.
  • The Fuzzy Logic algorythm ensures a high accuracy of the temperature control and optimal energy consumption.
  • The soft start functions and leakage current supervision warrant the reliability of heaters.
  • During the machine operation break, a decreased temperature is maintained, what enables a fast start.

System description

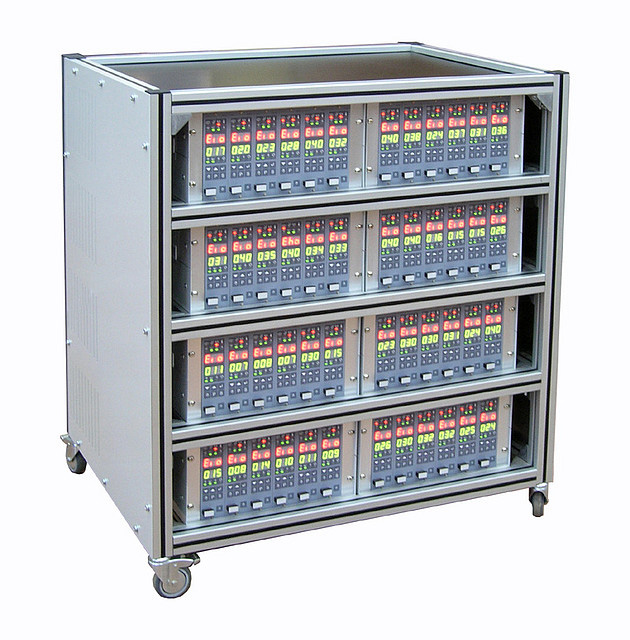

  • The SR11 system is composed of BR11 controllers placed in one housing and connected to the mould with heated channels by means of a dedicated ZP11 connection set. The housing, in the shape of a cassette, ensures appropriate exploitation conditions and the required protection degree against electric shocks. Multiple connectors ensure an easy connection with the mould.
  • Connecting cables of special design have been applied in the SR11 system
