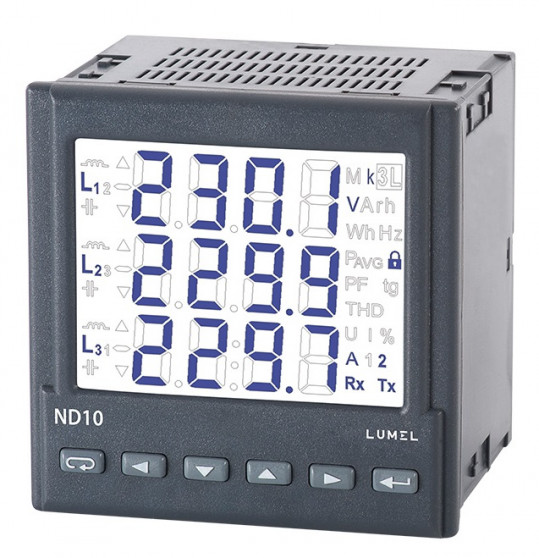

ND10

3-phase power network meter

The meter is distinguished by a high measurement accuracy, legible backlit LCD display and an attractive price. Meter is supplied from measurement circuit.

  • measurement of:
    • power network parameters in 4- wire balanced and unbalanced systems,
    • THD factors for currents and voltage,
  • indications considering values of programmed ratios,
  • 2 alarm outputs, 1 pulse output for active energy,
  • RS485 interface output with MODBUS protocol,
  • protection grade from the frontal side: IP65.
  • dimension: 96 x 96 x 77mm.
