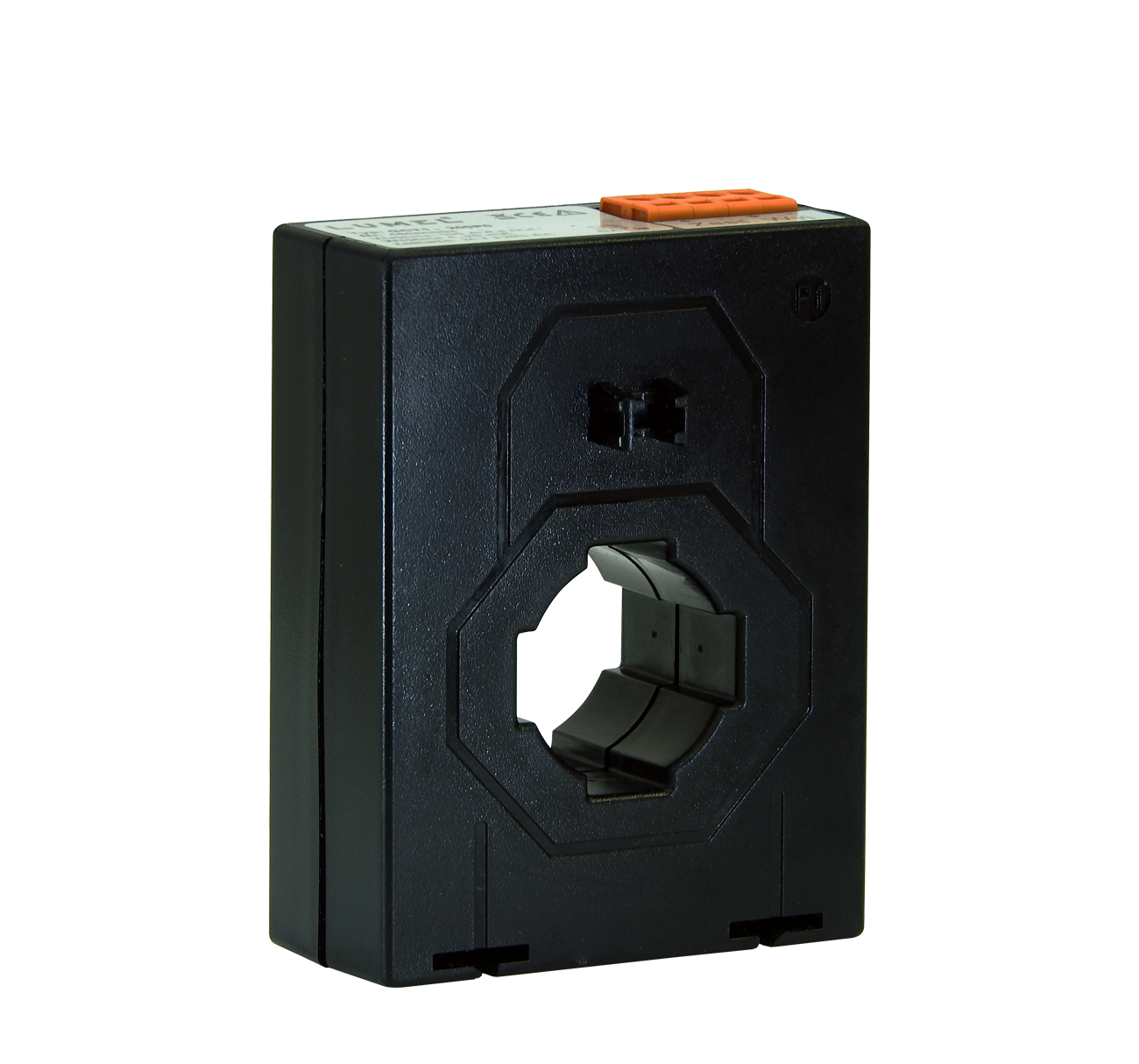

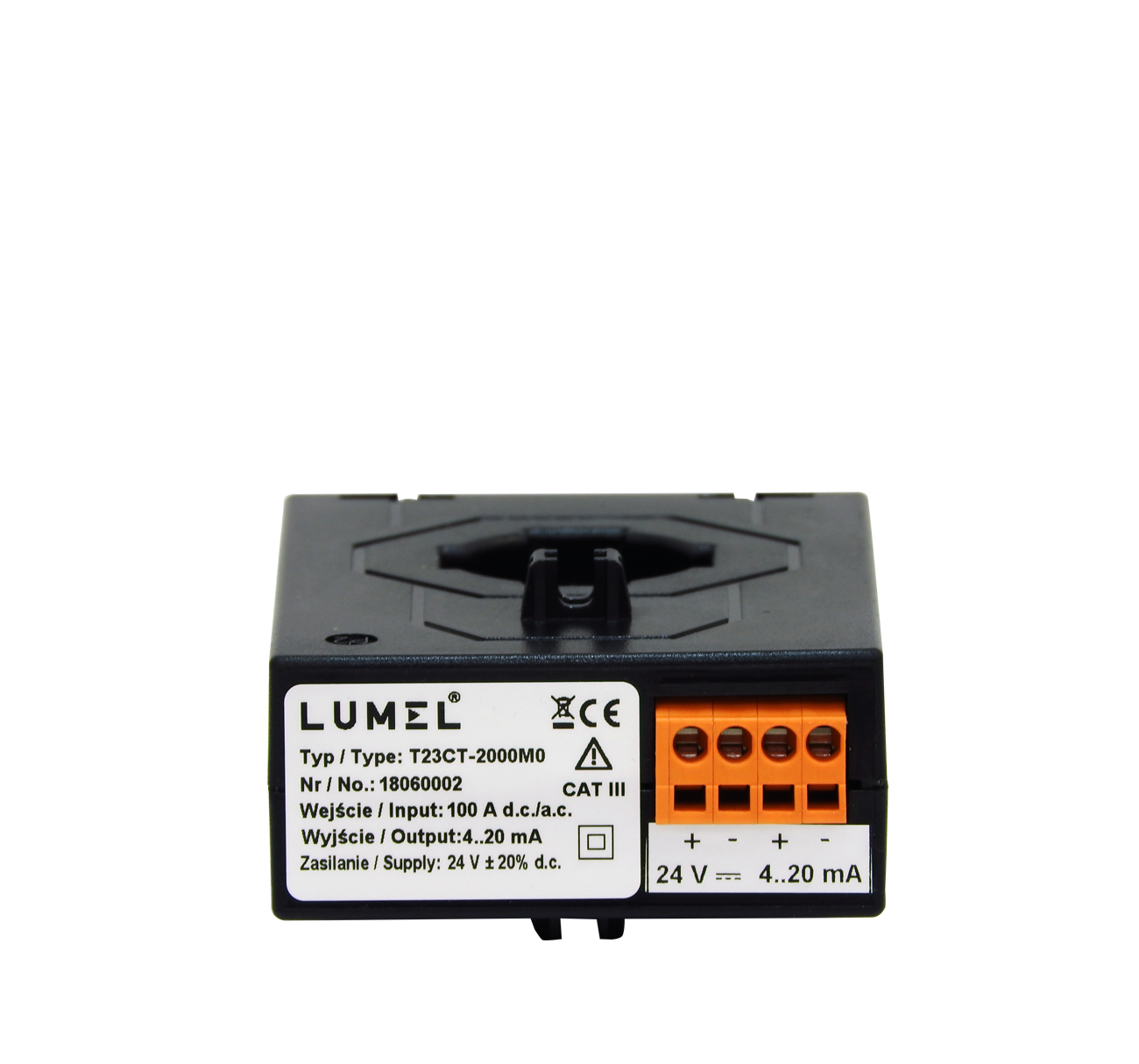

T23CT

AC/DC transducer

The Hallotron T23CT transducer is designed for continuous conversion of DC and AC RMS into a standard DC 4-20mA signal. The transducer is designed to be mounted directly on a conducting bus bar where the flowing current generates a magnetic field. Using the Hall effect, the sensor generates an electrical voltage proportional to the current. In the further part of the electronic circuit this voltage is converted into a current output signal.

  • hole diameter - ø28mm for cable or 30x10mm for busbur
  • 4-20mA analog output proportional to the value of current measurement
  • output signal galvanically isolated from input signal
  • 24V DC power supply
  • easy mounting
  • accessories for panel or busbar mounting in set
