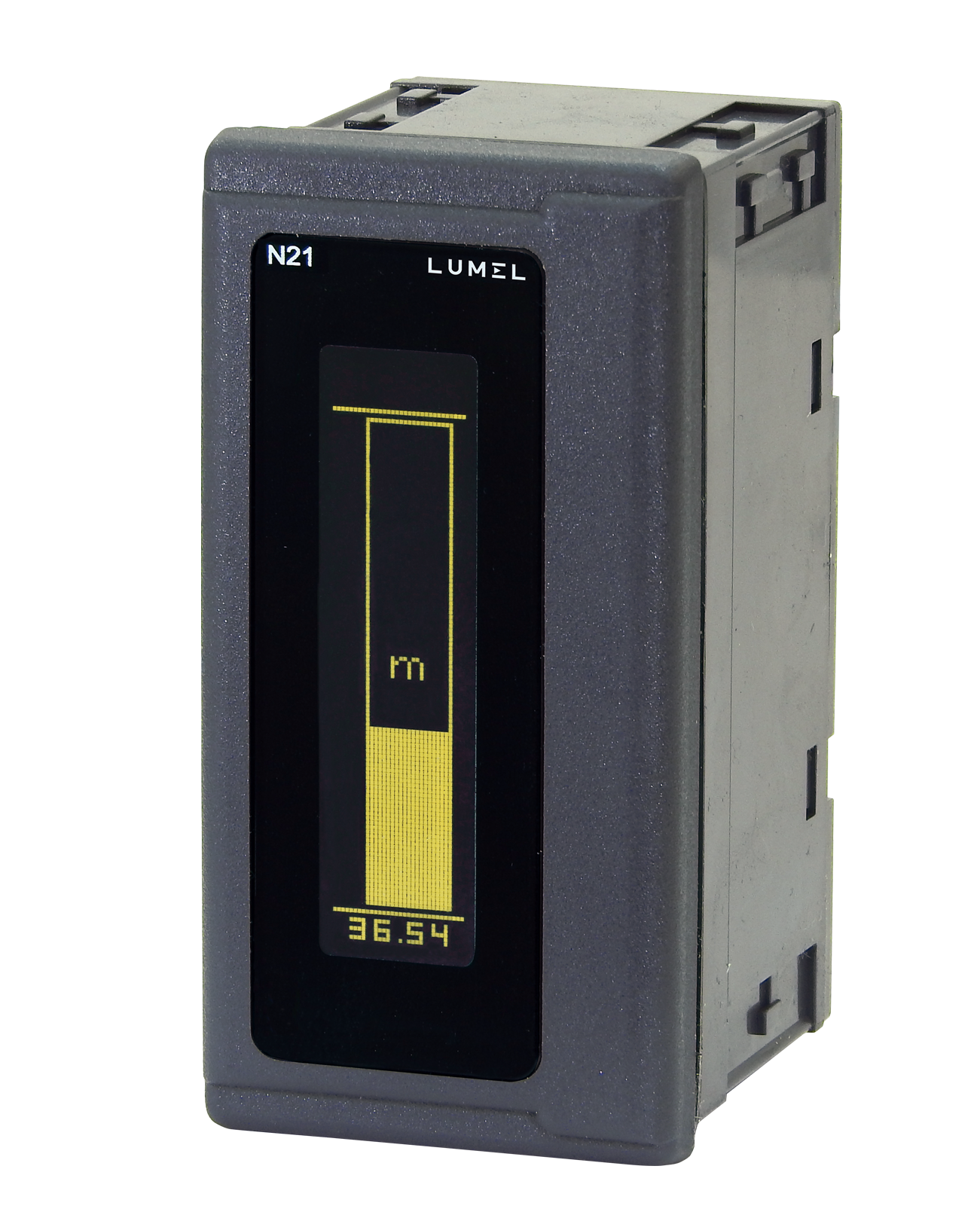

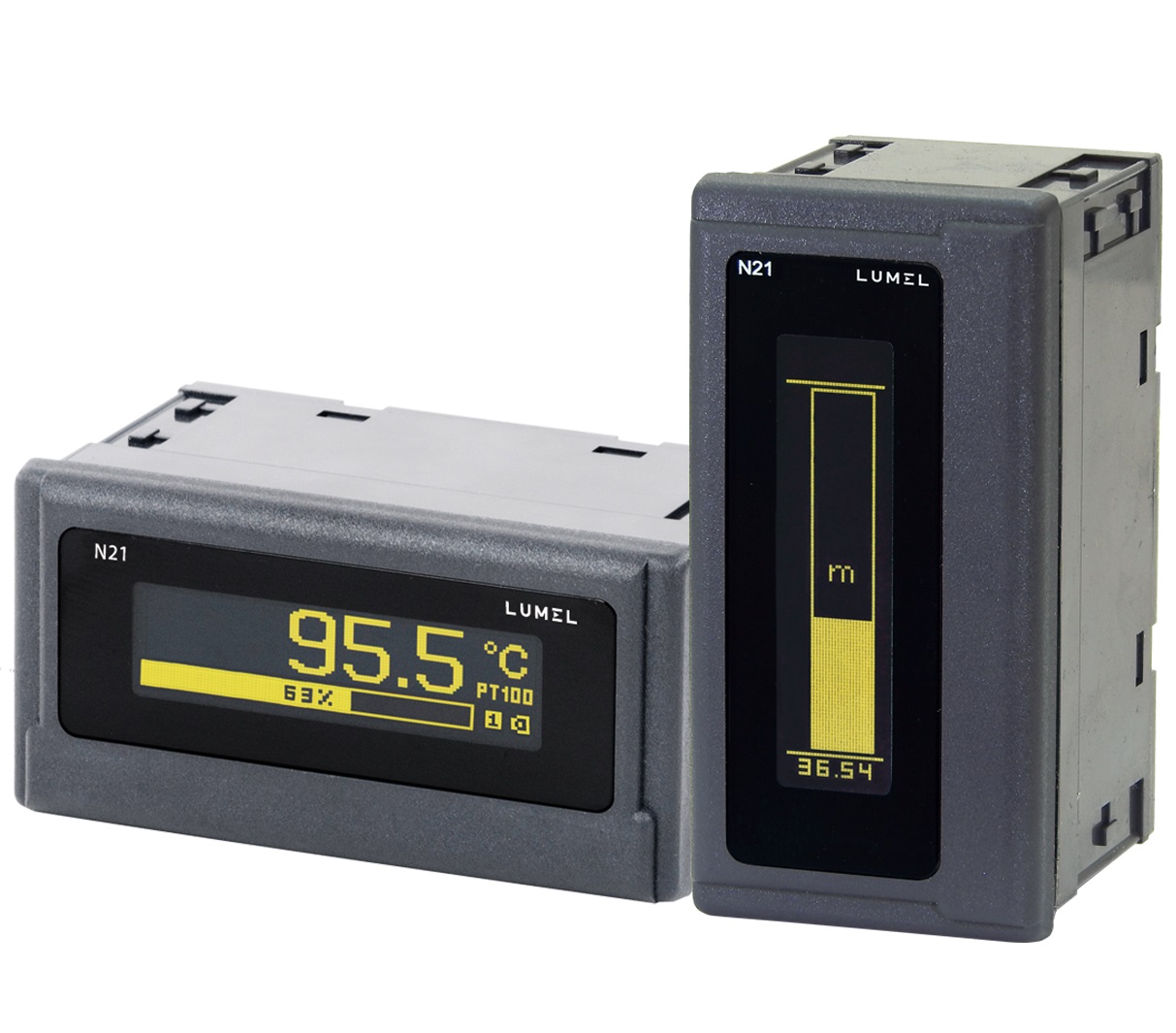

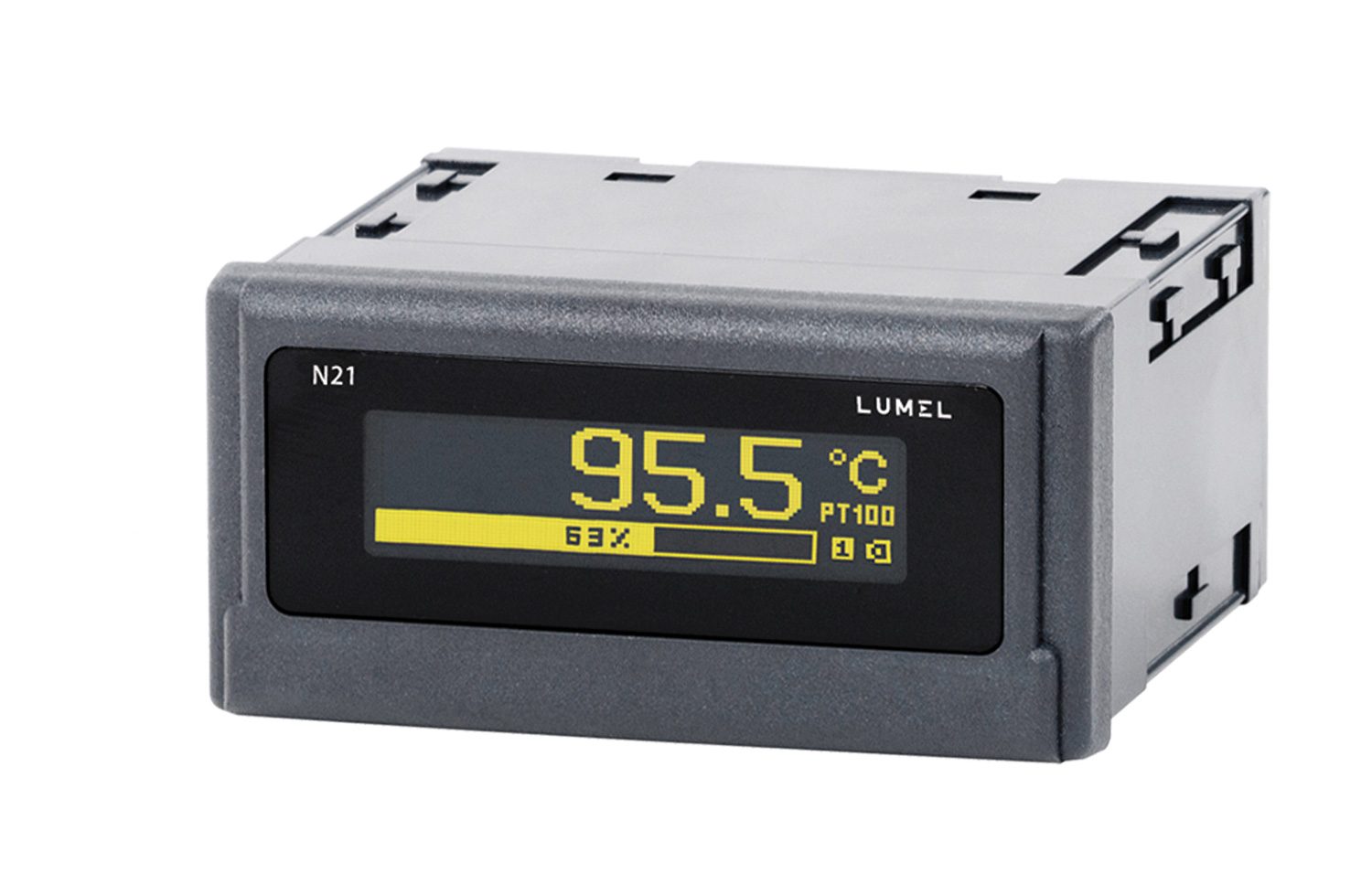

N21

Temperature and d.c. standard signals digital meter

N21 is an ideal soluttion for visualisation of industrial processes. Universal input, universal supply and universal OLED display allow to apply meter in many applications.

  • Universal measuring input (for standard signals and cooperation with temperature sensors).
  • Relay alarm output.
  • Universal supply voltage from 24 V up to 230 V a.c./d.c.
  • Supply of object transducers 24 V d.c.
  • Universal OLED display (horizontal or vertical, user-programmable by using the appropriate firmware).
  • Meter configuration through miniUSB connector with eCon software.
  • Programmable parameters in eCon software:
    • selection of measured value,
    • rescaling of indications (individual characteristic),
    • accuracy of measured value (decimal point),
    • alarm output mode,
    • measurement averaging time,
    • firmware update (horizontal or vertical version),
    • defining your own unit,
    • language selection.
  • Protection grade: IP65
  • External dimensions: 48 x 96 x 64mm.
  • Check part numbers/executions available in the stock
