Controller - 3 outputs

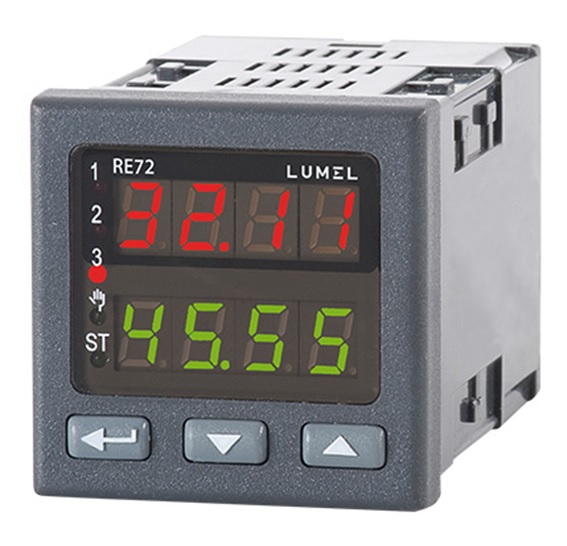

RE72

The RE72 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the stabilization of temperature changes is necessary.

  • Universal measuring input (thermocouples, resistance thermometers or analog signals),
  • Output: relay, transistor of OC type, continuous or binary for SSR control,
  • Control algorithm:
    • PID,
    • On/off with histeresis,
    • valve control (step-by-step control),
    • heating/cooling,
  • Automatic selection of PID parameters (acc. to the new innovative SMART PID technology),
    • self-acting and precise selection of PID settings,
    • effective  control algorithm,
    • easy and simple solution for technical service,
    • lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
  • Kind of set point value:
    • fixed set point,
    • programmed - 15 programs with 15 segments in each,
    • from additional input,
    • control from binary input,
  • Timer function,
  • Alarm latch function (LATCH) applied in safety controllers,
  • Measurement of heater current and heater burning control or short-circuit of the control element (e.g. SSR),
  • IP65 protection grade,
  • Password protection,
  • External dimensions: 48 x 48 x 93mm.
