- DIN rail mounting
- Energy measurement compliant with standards:
- EN 50470-3 – Accuracy Class B
- IEC 62053-21 / IEC 62053-23 – Class 1
- IEC 61557-12
- Direct Connected current measurement
- Self-powered (supply from measuring circuit)
- Bidirectional energy measurement: import/export
- Maximum Demand measurement
- True RMS (TRMS) measurement
- Two pulse outputs, configurable for imported (consumed) or exported energy
- One tariff input
- RS-485 communication interface with Modbus RTU protocol
- Indication of digital input and output status on the display
- Seal-able terminals (protection against unauthorized access)
- Durable laser markings (identification and product data)

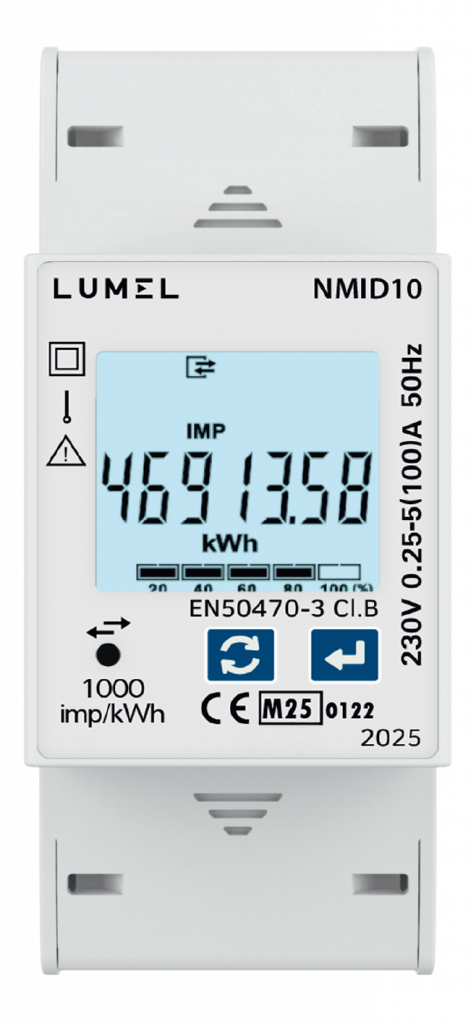

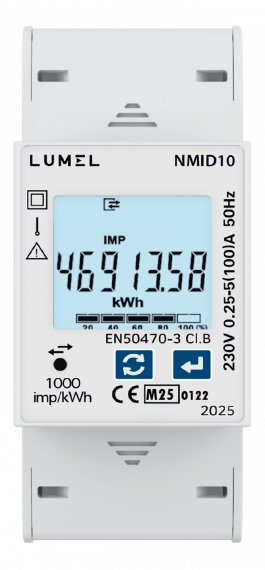

Single-phase energy meter with MID certification (up to 100 A) (MODBUS RTU)
NMID10
NMID10 is a modern, single-phase energy meter for direct connection, designed for use in residential buildings, commercial facilities, and light industrial applications.
The device is engineered for precise measurement and monitoring of electrical parameters in single-phase networks.
The meter enables direct current measurement up to 100 A, without the need for external current transformers (CTs).
It is equipped with an RS-485 communication interface with Modbus RTU protocol, enabling remote data reading and integration with energy management systems (EMS).
Measured values are displayed on a clear, backlit LCD display.
The device features pulse outputs and an LED indicator for energy consumption.
The meter housing is designed for DIN rail mounting, ensuring quick and convenient installation in electrical distribution boards.
