- DIN rail mounting
- Energy measurement compliant with standards:
- EN 50470-3 – Accuracy Class B
- IEC 62053-21 / IEC 62053-23 – Class 1
- IEC 61557-12
- Direct Connected current measurement
- Self-powered (supply from measuring circuit)
- Bidirectional energy measurement: import/export
- Maximum Demand measurement
- True RMS (TRMS) measurement
- Two pulse outputs, configurable for imported (consumed) or exported energy
- One tariff input
- RS-485 communication interface with M-Bus protocol
- Indication of digital input and output status on the display
- Seal-able terminals (protection against unauthorized access)
- Durable laser markings (identification and product data)

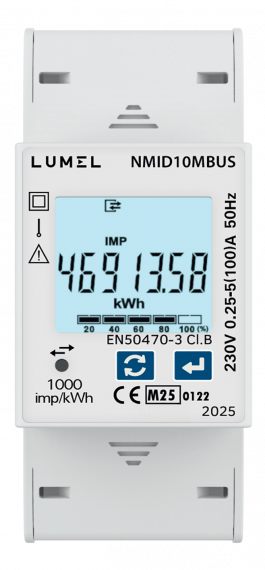

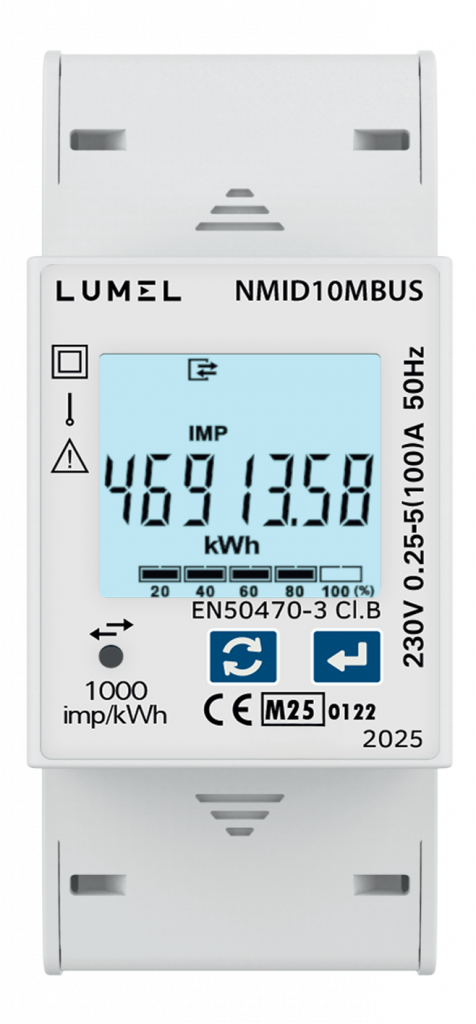

Single-phase MID certified energy meter (up to 100A) (MBUS)
NMID10MBUS
NMID10MBUS is a modern, single-phase electricity energy meter for direct measurement, designed for use in residential buildings, commercial facilities, and light industry.
The device has been designed for precise measurement and monitoring of electrical parameters in single-phase networks.
The meter enables direct current measurement up to 100 A, without the need to use current transformers.
It is equipped with an RS-485 communication interface with M-Bus protocol, enabling remote data reading and integration with energy monitoring systems.
Measurement data are presented on a clear, backlit LCD display.
The device is equipped with pulse outputs and an LED indicator signaling energy consumption.
The meter housing is adapted for mounting on a standard DIN rail, ensuring quick and convenient installation in electrical distribution boards.
