- Energy meter designed for operation with current transformers (CT-connected)
- Programmable CT ratios (on-site CT ratio configuration)
- Energy measurement compliant with standards:
- IEC 62053-21
- IEC 62053-23
- EN 50470-3 – Accuracy Class B (Class 1 according to IEC 62053-21)
- Bidirectional energy measurement: imported/exported.
- Two pulse outputs, configurable for imported (Import) or exported (Export) energy
- One tariff input
- RS-485 communication interface with Modbus RTU protocol
- Seal-able terminals (protection against unauthorized access)
- Durable laser markings (identification and product data)

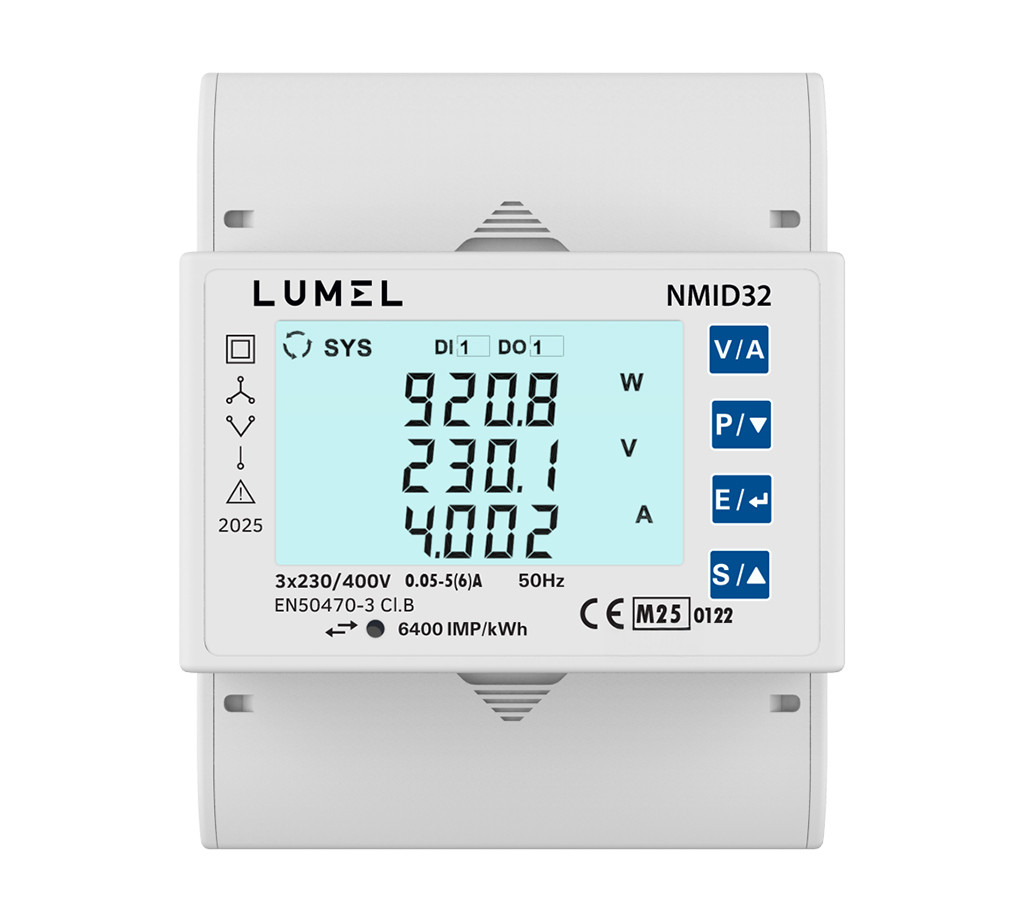

Three-phase MID certified energy meter (1/5A) (MODBUS RTU)
NMID32
NMID32 is a three-phase electricity energy meter designed for parameter measurement in 3-phase 4-wire, 3-phase 3-wire, and single-phase networks. The device is intended for use in residential installations, commercial facilities, and light industry.
The meter enables simultaneous display of multiple electrical parameters, allowing quick and convenient reading of measurement data. It supports multi-tariff energy measurement, with tariff selection via Modbus communication or a dedicated tariff input.
NMID32 is equipped with pulse outputs and an LED indicator for energy consumption. The built-in RS-485 communication interface with Modbus RTU protocol (industrial standard) enables remote data reading and integration with energy monitoring and management systems.
The device housing is adapted for mounting on a standard DIN rail, ensuring quick and easy installation in electrical distribution boards.
