- Measurement of 54 power network parameters, including current and voltage harmonics up to 63rd in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.

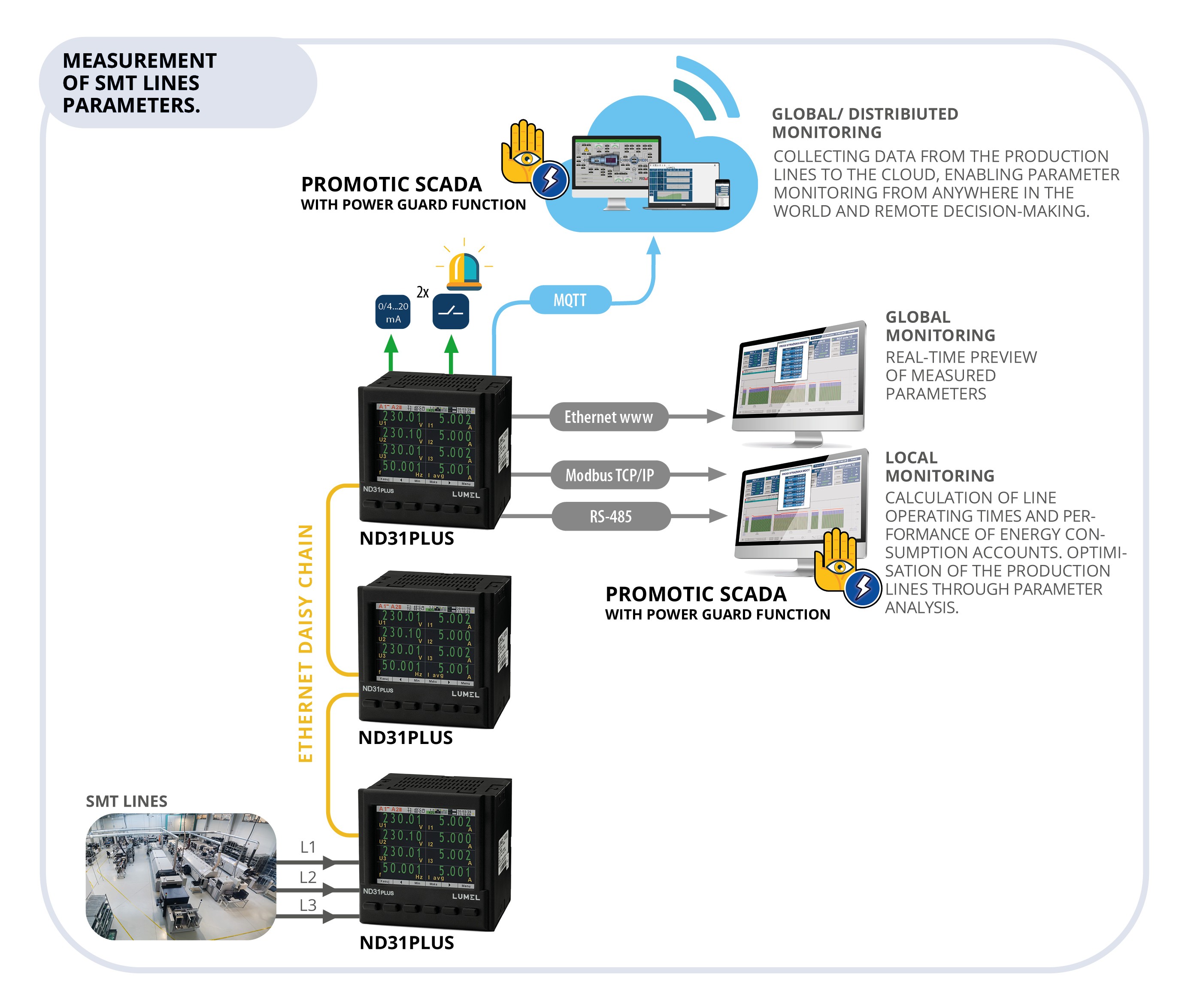

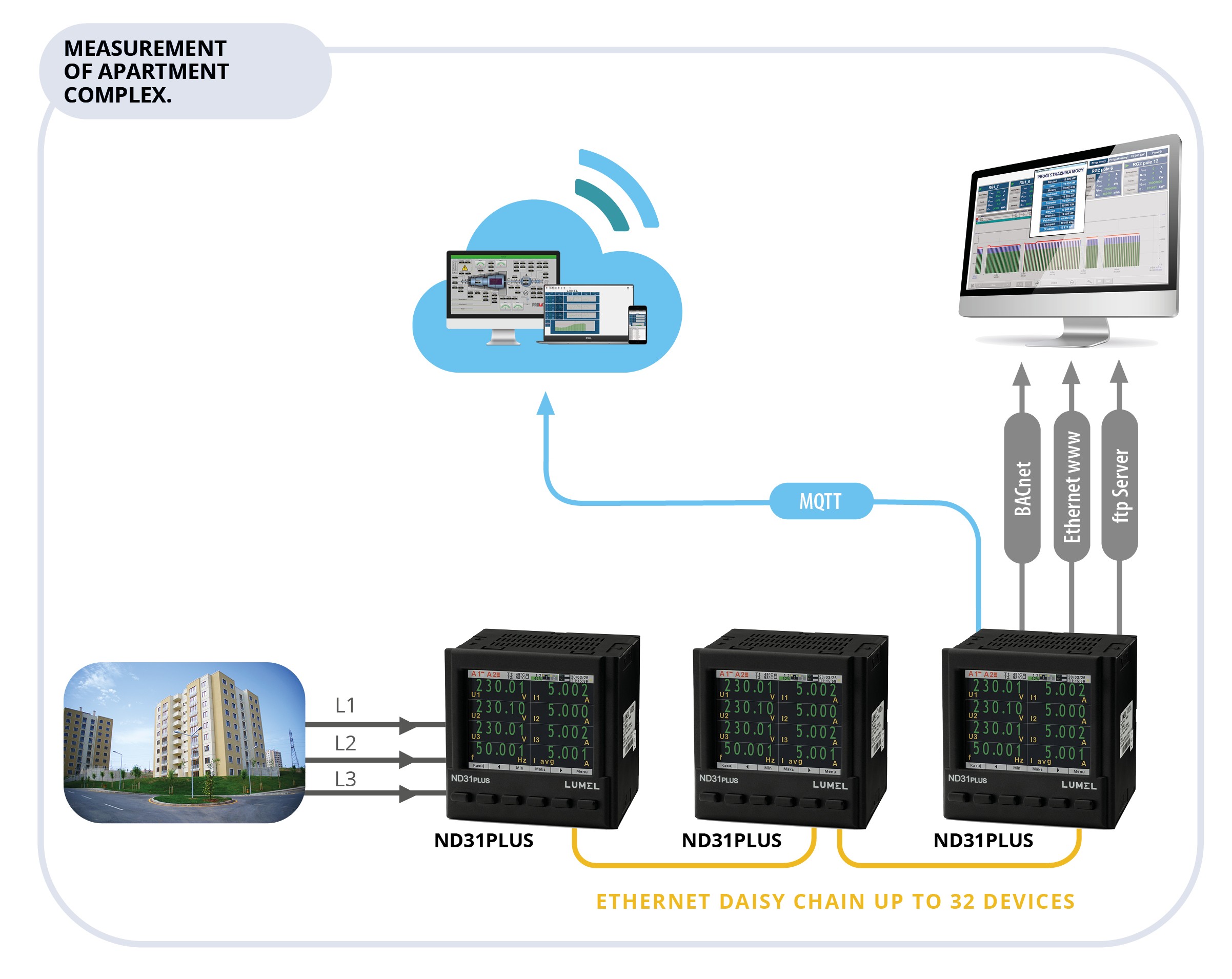

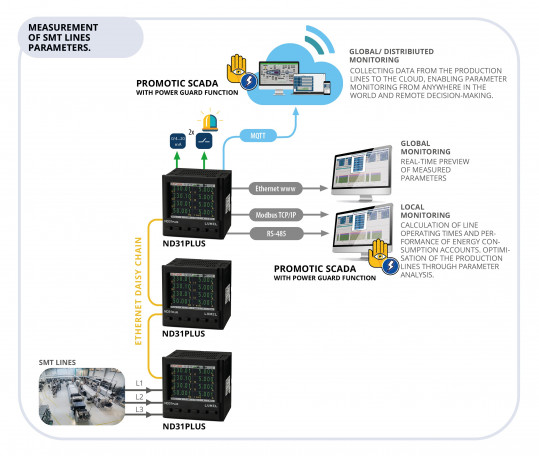

- Ethernet Daisy Chain Topology – Fewer Cables, More Possibilities

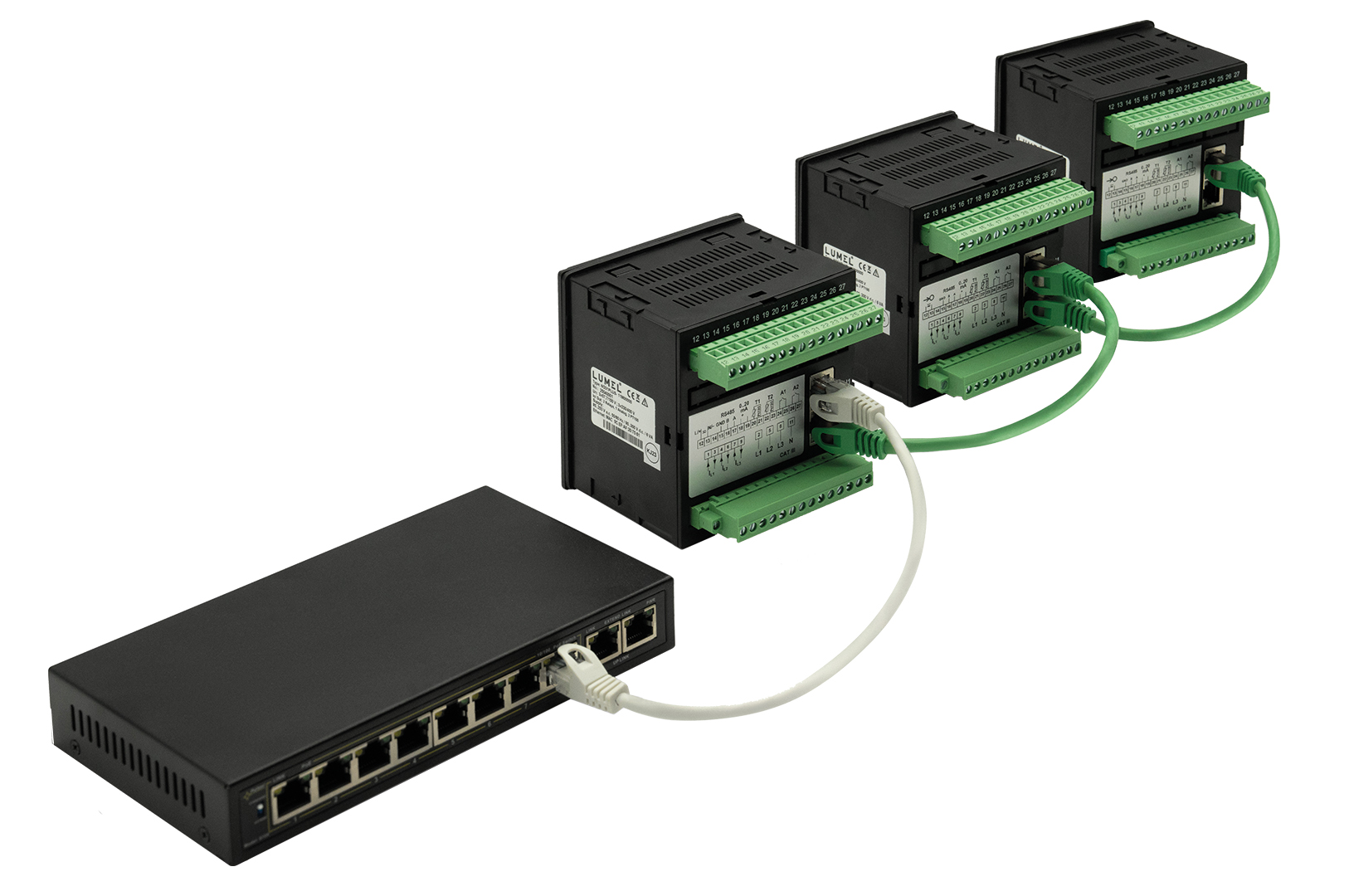

The ND31PLUS features two RJ45 Ethernet ports, allowing devices to be connected in a daisy chain topology – that is, in a serial connection of Ethernet devices without requiring a switch between each one.
What does this mean in practice?
- Saves space in control cabinets – no industrial switches needed,
- Reduces cable and hardware costs – one cable links device to device,
- Faster installation and fewer errors – simplified wiring,
- Easy scalability – add new devices without modifying the existing setup,
- Neater installations – fewer cables for a cleaner cabinet layout.
Thanks to these advantages, ND31PLUS is ideal for large switchboards, production lines, energy installations, and any application where the number of Ethernet devices is growing, and both space and time are critical factors.
- Programmable choice of communication protocols: MQTT, BACnet / IP lub MODBUS TCP/IP.
- Modern and user-friendly BACnet/IP interface.
- High accuracy class (0.2S for active energy).

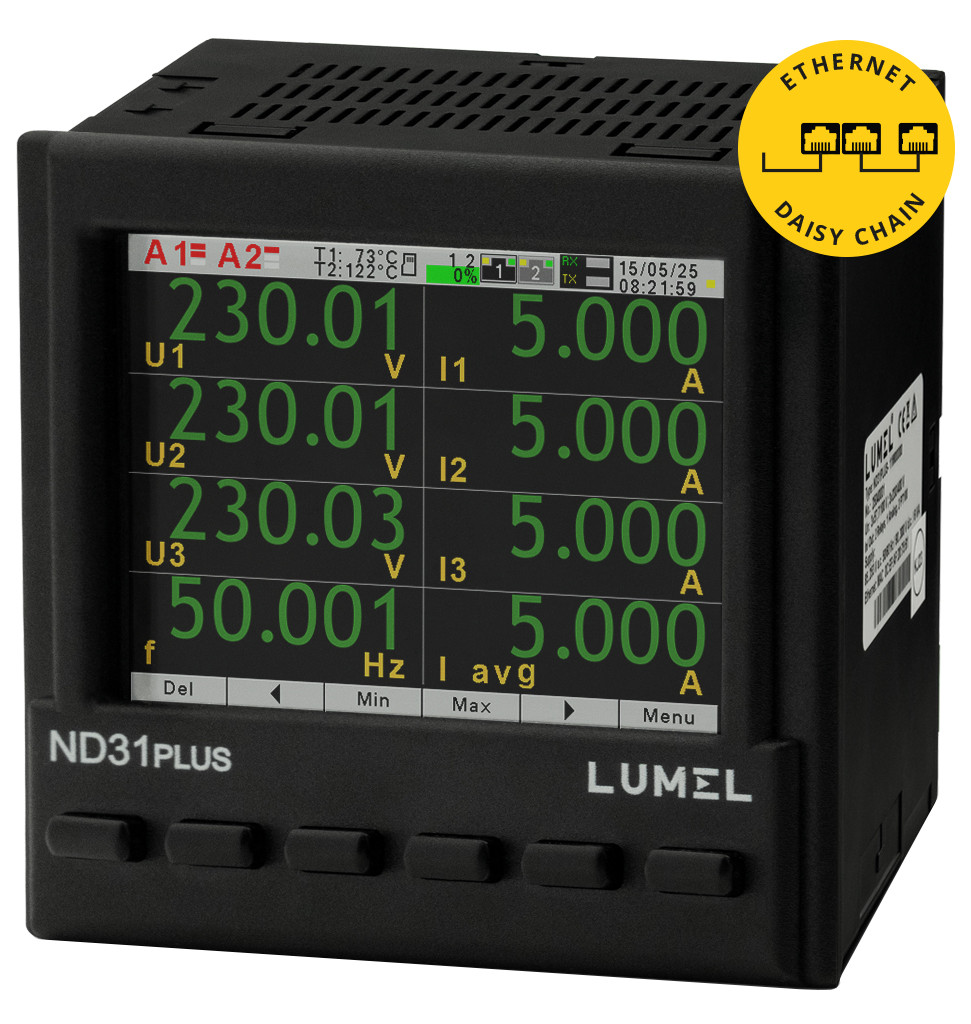

- Graphical color display: LCD 3.5’’ typu TFT, 640 x 480 pixels, fully configurable by a user.
- 14 predefined screens designed for intuitive operation, including harmonics display, analog-style meter visualization, and a demand power screen useful for forecasting power consumption.
- Memory of minimum and maximum values.
- 2 configurable alarm outputs.
- Supervisory relay mode for alarm outputs.
- Digital output RS-485 - MODBUS protocol.
- Archiving of up to 32 measured parameters in the internal memory 8 GB.
- Modern and user-friendly Ethernet interface 10/100 BASE-T:
- protocol: MODBUS TCP/iP, HTTP, FTP, • protocol: MQTT,
- protocol: BACnet/IP,
- Analog output 0/4...20 mA for retransmission of the measured value and two PT 100 inputs (eg. for measurement of transformer temperature).
- services: www server, ftp server, DHCP client, NTP server, •
- Daisy Chain communication 2xRJ45; 10/100 Mbit/s; 10Base-T/100Base-TX.
- Programming of parameters using free eCon software.
- Overall dimensions: 96 x 96 x 77 mm.
