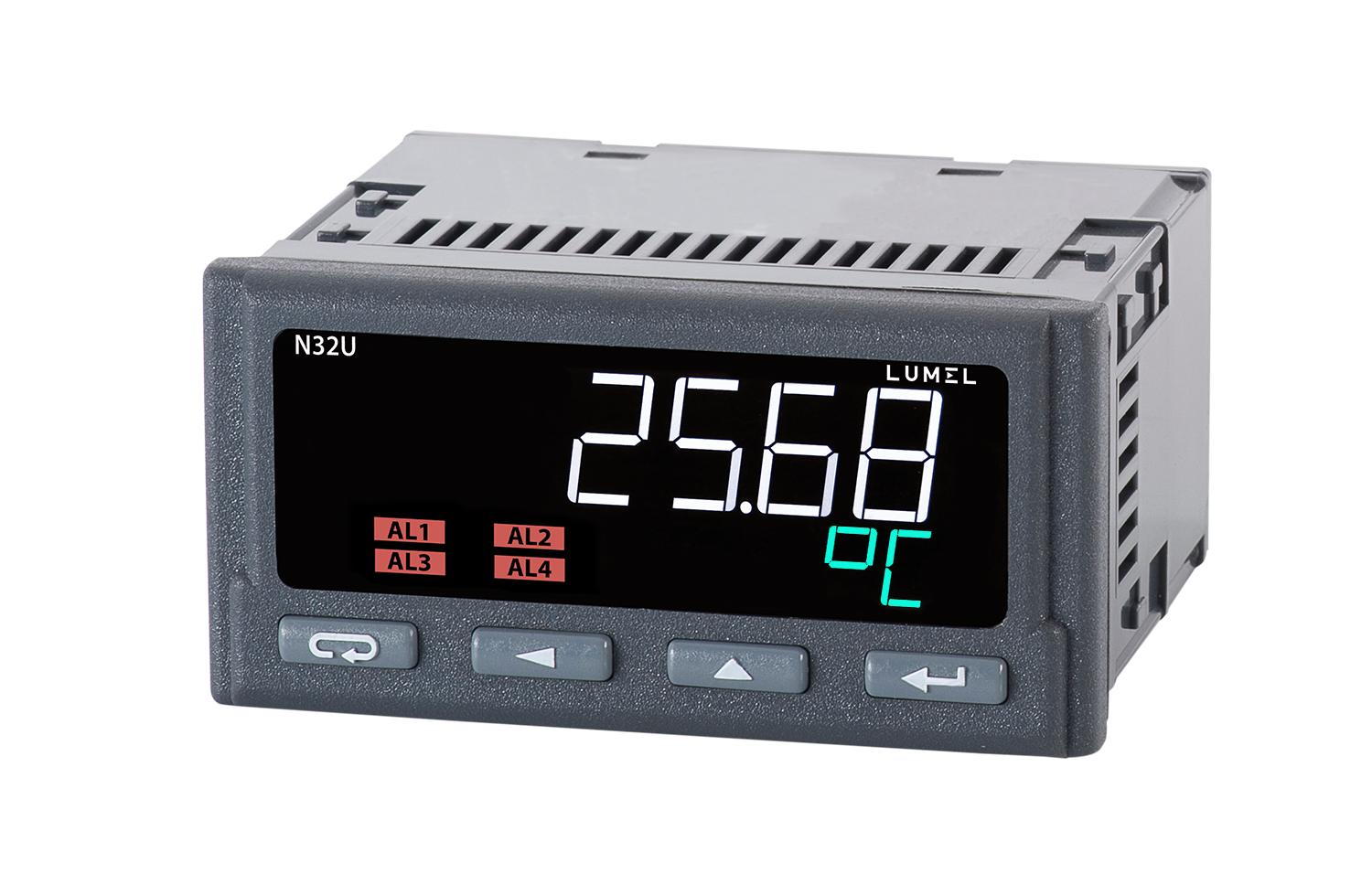

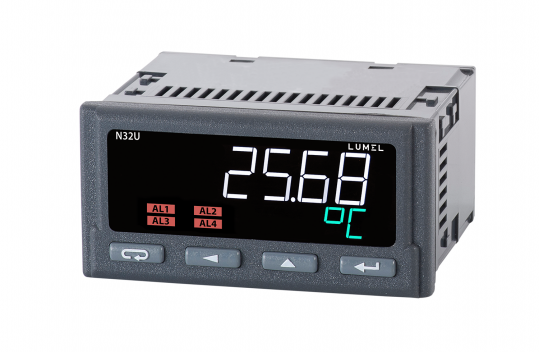

Programmable digital meter of temperature, resistance and standard signals

N32U

NEW

From the Q1 of 2021 the offer of Lumel digital meters has been extended by the introduction of N32U a programmable meter of temperature, resistance, and standard signals.

N32U meter distinguishes:
- modern and easy-to-read LCD display
- universal measuring input
- RS-485 digital output as a standard.

>>>>>> See the N32 Series Video  <<<<<<<

Prices / An inquiry

Go to partner zone

  • universal input for measuring: temperature, resistance, standard signals

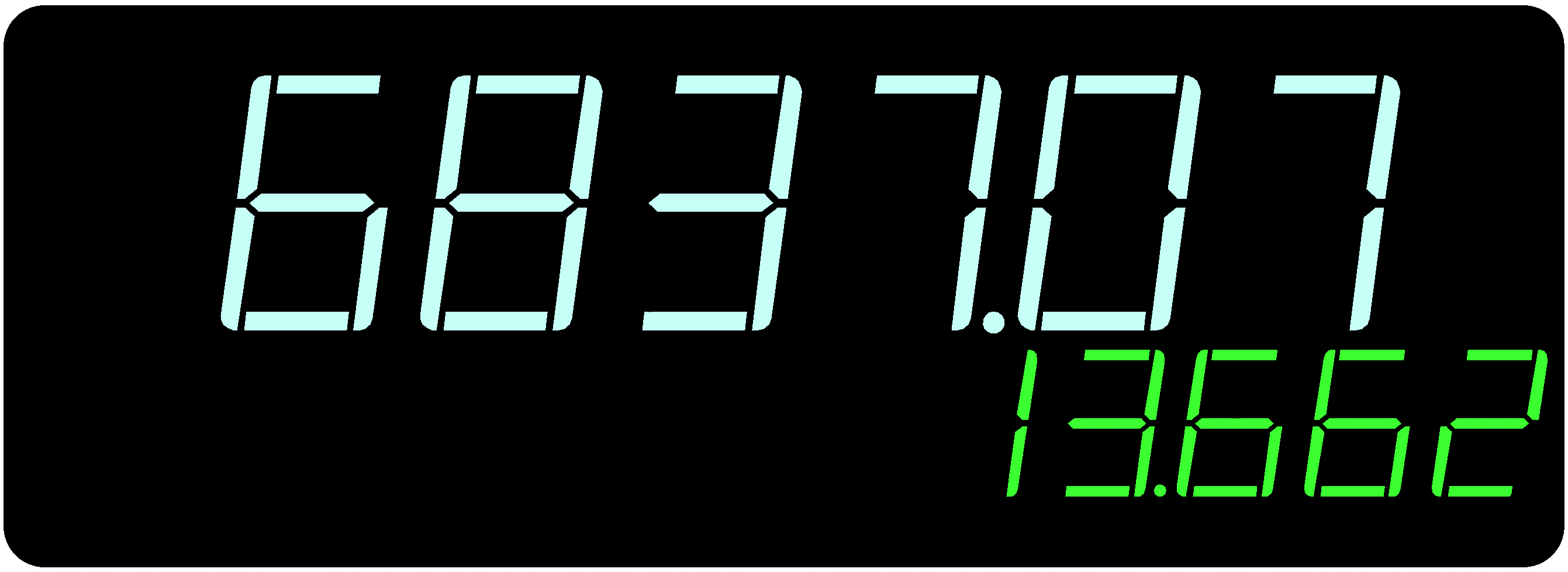

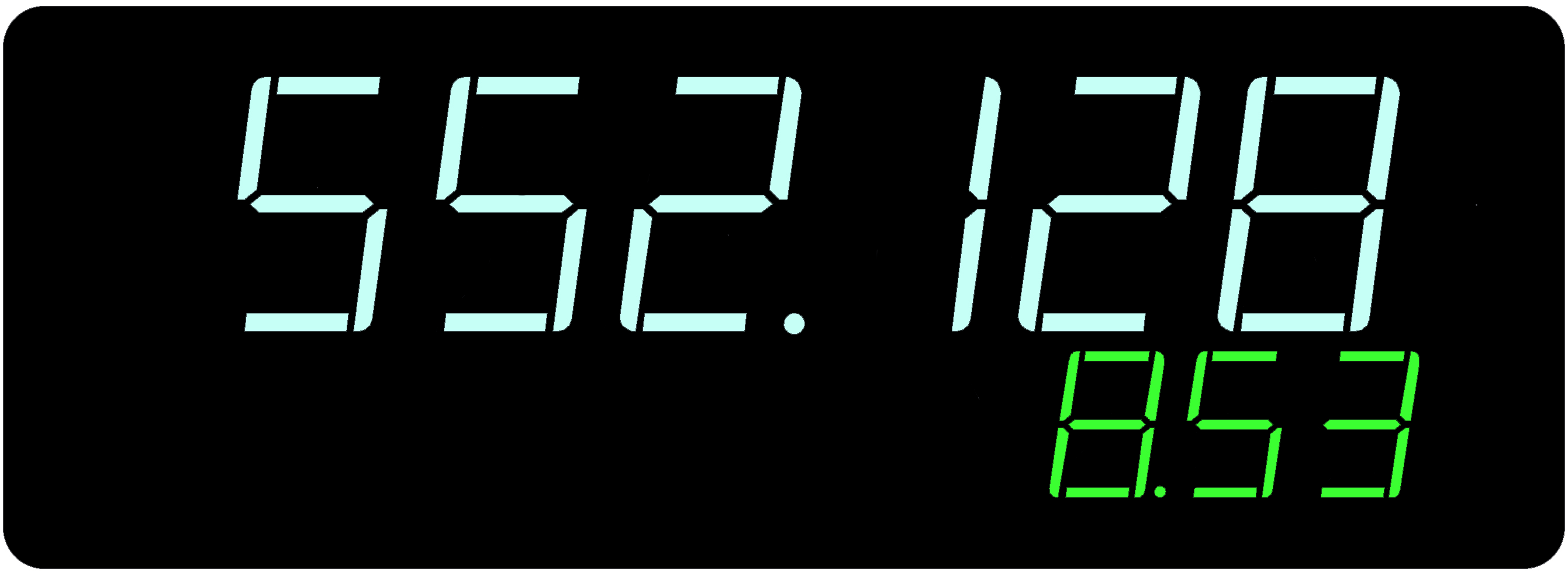

  • two-line LCD display with high contrast and built-in backlighting
  • possibility of displaying the measured value and time simultaneously or an uncalculated quantity or unit (programmable unit of measured quantity)
  • meter programming from keyboard or through the RS-485 interface by means of the free eCon software.
  • 4 alarm outputs with signalling on led diodes, working in 7 different modes (option)
  • conversion of any measured value into an analog signal 0/4...20 mA or 0...10V (option)
  • memory of minimal and maximal values for all measured quantities
  • supply of object transducers
  • 32-point individual characteristic for the measured value
  • mathematical functions for converting the measured value.
