Programmable meters with bargraphs

NA3

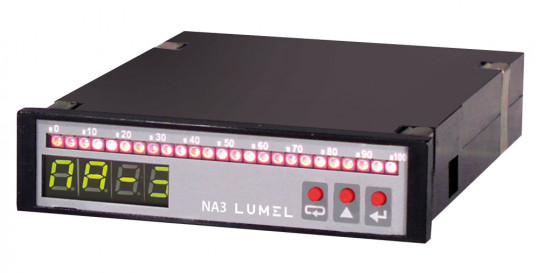

Programmable meters with multicolour bargraph indicators NA3 are destined to measure and recording d.c. current or d.c. voltage, temperature, resistance and other non-electrical magnitudes like: level, flow, pressure, humidity

Meters with bargraph are devices ensuring both a high measurement accuracy and very well visualization of the measuring process courses.
Very well visualization of the process is possible through using in meters 3 and 7-coloured bargraph built with diodes made in the gallium nitride technology. They can find application in various industrial fields, e.g.food industry, pumping stations and savage-treatment plants, chemical industry, weather stations, brewing industry and many other fields where they are destined for visualisation of the measured value and evaluation of the monitored manufacturing process change trend. They can also find application in automation systems where programmable controllers are applied.
Features:

  • input: programmable
    • voltage: 0...300 mV, 0...200V, - 5...60V,
    • current: 0...200 mA, 0...2A,
    • thermocouple, resistance thermometers,
    • 0...4/10ohm
  • output: programmable - analog, relay
  • digital RS-485 with MODBUS protocol,
  • supply: 95...230...253 V a.c./d.c., 20...24...40 V a.c./d.c.

Kinds of execution:

  • horizontal, 1-measuring channel, with bargraph and display

Next to programmable measuring functions meters have many additional functions:

  • measurement of the input quantity and displaying it on the LED display and on the bargraph,
  • evaluation of the input signal into the indication on the base of the individual linear characteristic,
  • arithmetical: raising to a power, extraction of roots
  • programming of the bargraph colour and resolution,
  • signalling of the set alarm value exceeding,
  • recording of the measured signal in programmed time intervals,
  • memorisation of maximal and minimal values,
  • programming of the measurement averaging time,
  • programming of the indication resolution,
  • lockout of parameter introduction by means of a password,
  • servicing of the RS-485 interface in MODBUS protocol, both in ASCII and RTU mode,
  • galvanic isolation,
  • fixing in the panel

External dimensions:

  • 96 x 24 x 125mm
