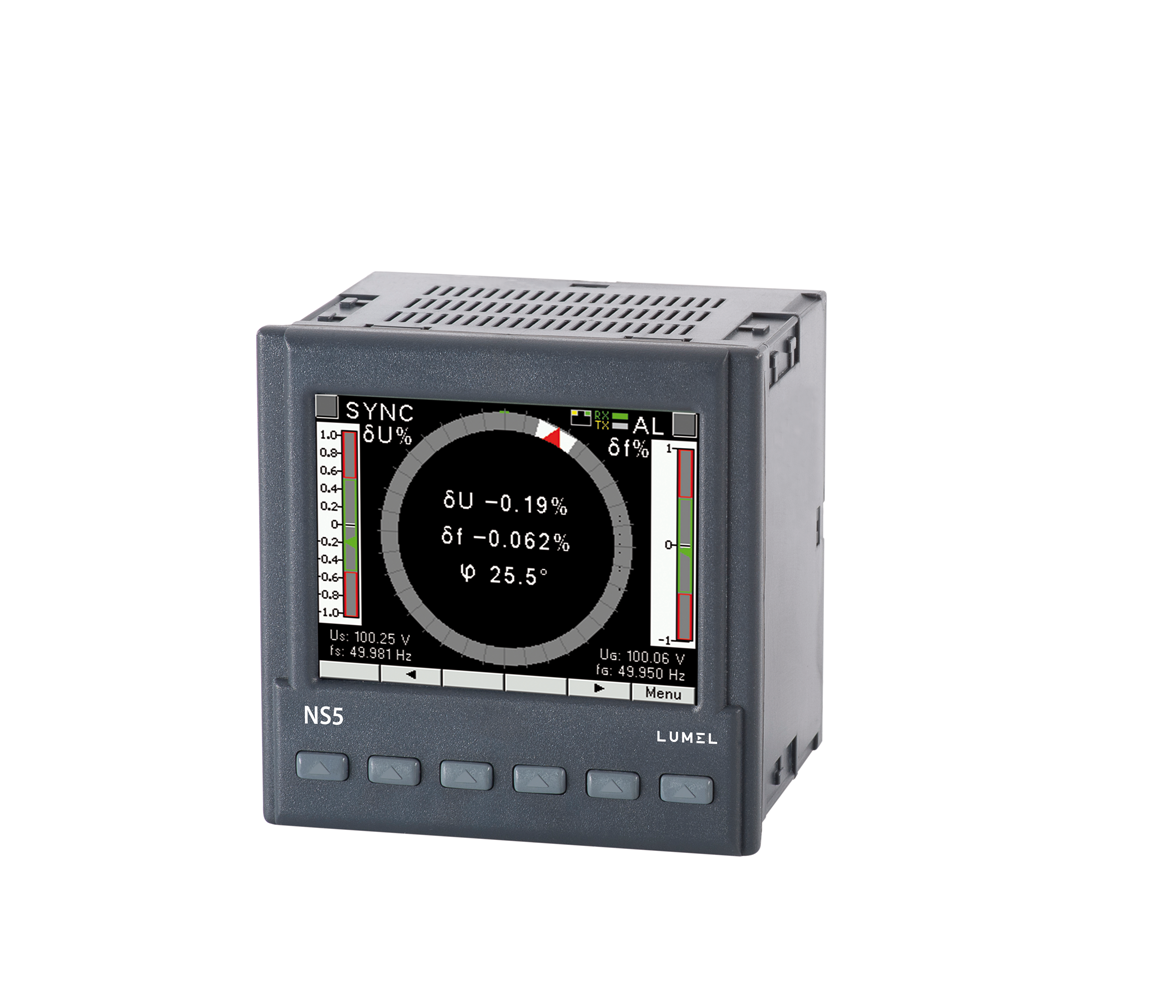

Synchronization meter / Synchronoscope

NS5

Na magazynie

Synchronization meter NS5 has been designed for automatic switching of three-phase generators for parallel operation with the grid or with other generators with rated frequency of 50 or 60 Hz.

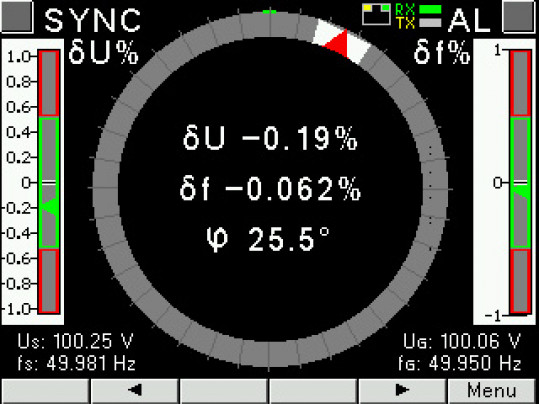

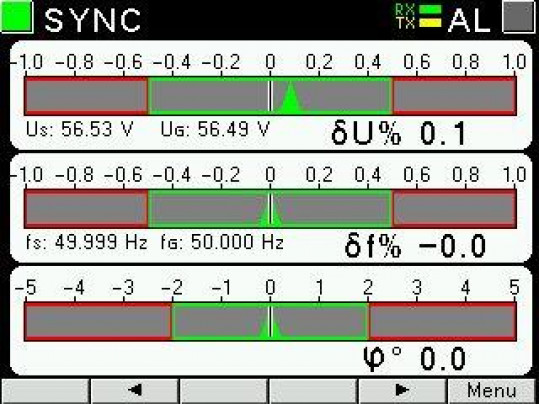

  • Clear data visualization thanks to color graphic display 3.5'' TFT (separately for the synchroscope, differential voltmeter, frequency meter);
  • Range of input signals: 50...150 V or 150...400 V;
  • Direct or indirect measurement through voltage transformers;
  • Additional control input: BLK - lock synchronization, START - start synchronization
  • Programmable hysteresis of voltage difference, frequency, and phase shift angle
  • Ethernet interface 10/100 BASE-T for connecting the synchronization meter to the local area network (LAN) or the global one (WAN);
  • Network services: web server, Modbus TCP / IP, DHCP client;
  • RS485 with MODBUS RTU protocol;
  • Password protection for two accounts of Web Server user,
  • Measurement of the minimum and maximum values of voltage and frequency
  • External dimensions:  96 x 96 x 77mm.
  • Check part numbers/executions available in the stock
