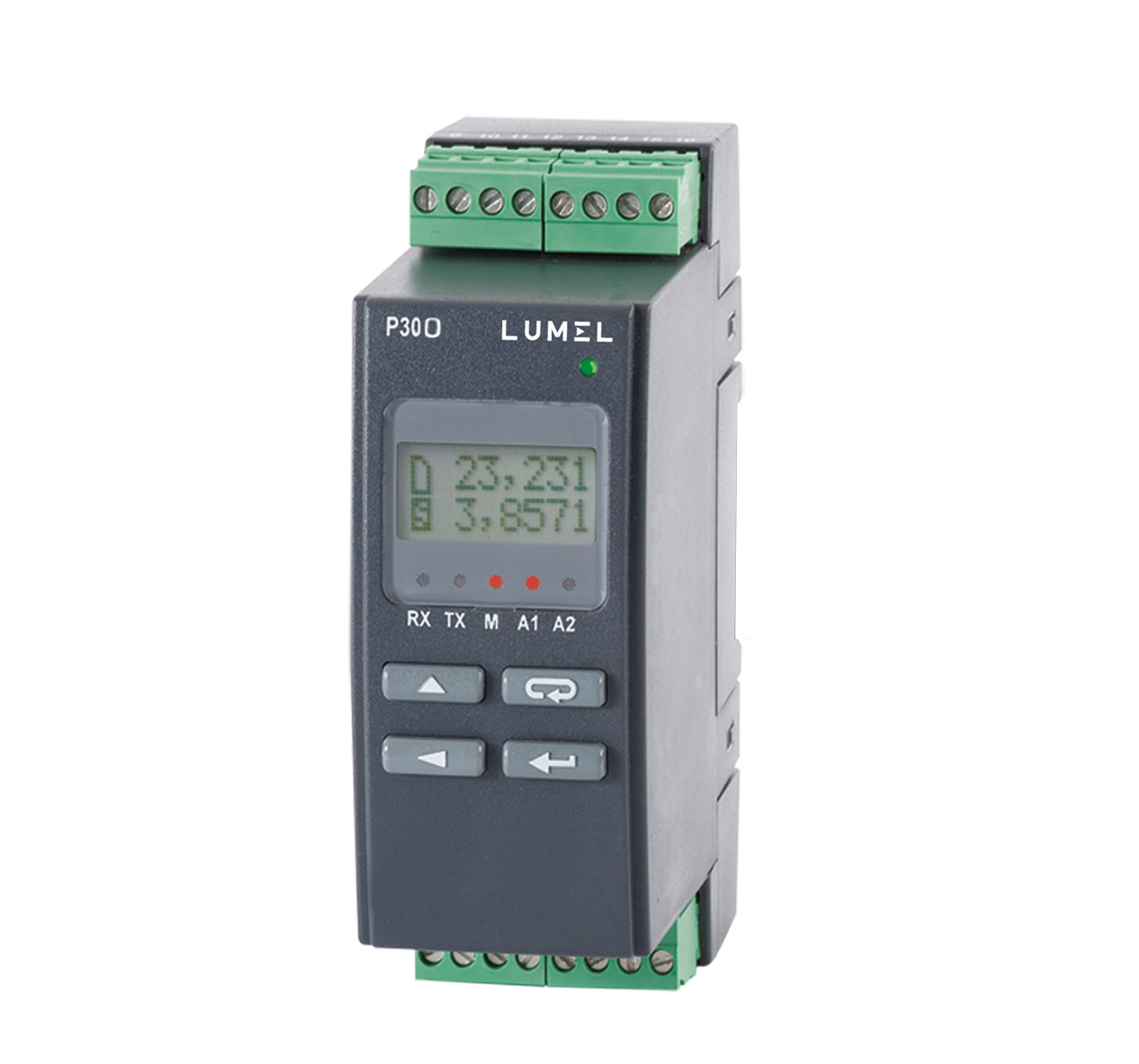

P30O

Transducer of pulses, frequency, turns, operation time with Ethernet

Programmable transducer P30O type is destined to convert of number of pulses, number of working hours, frequency, period and rotational speed into a digital or standard current or voltage signal.

Configure / An inquiry

Price / Go to partner zone

  • 2 universal pulse inputs.
  • 3 versions:

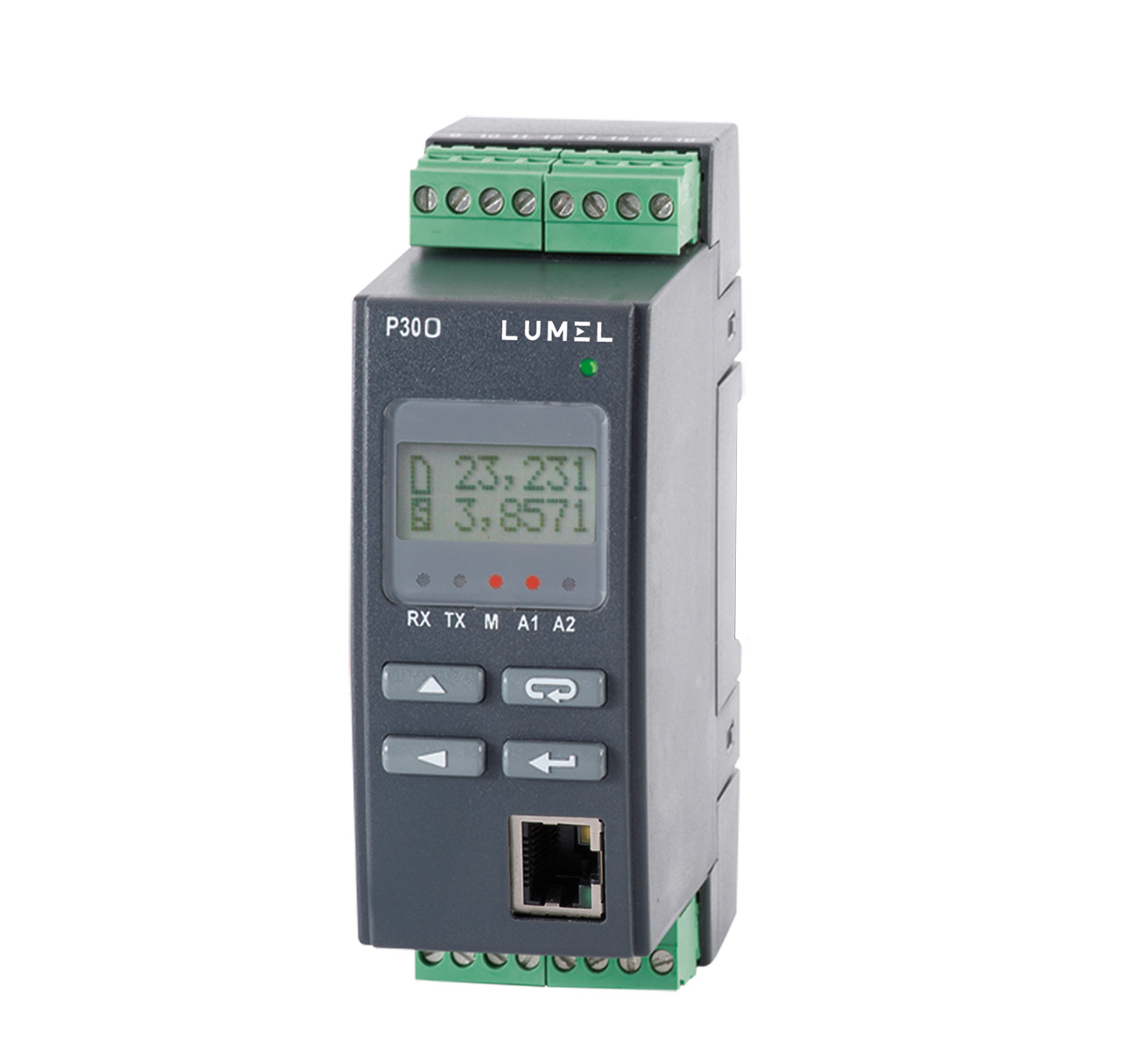

    • with Ethernet and internal memory,
    • with SD card,
    • standard,
  • mathematical functions for each input,
  • individual characteristic (up to 21 points) for each input,
  • 1 or 2 (option) alarm output,
  • power supply of object transducers 24V d.c. (option),
  • RS-485 interface Modbus RTU Slave, Modbus TCP Slave (option),
  • data recording in:
    • internal memory up to 4MB,
    • in external SD/SDHC card (option),
    • or internal file system memory (8GB) (option).
  • transducer configuration can be realized with the use of buttons, RS485 interface and eCon software or WWW server,
  • firmware upgradeable by the user,
  • external dimensions: 45 x 120 x 100mm.
