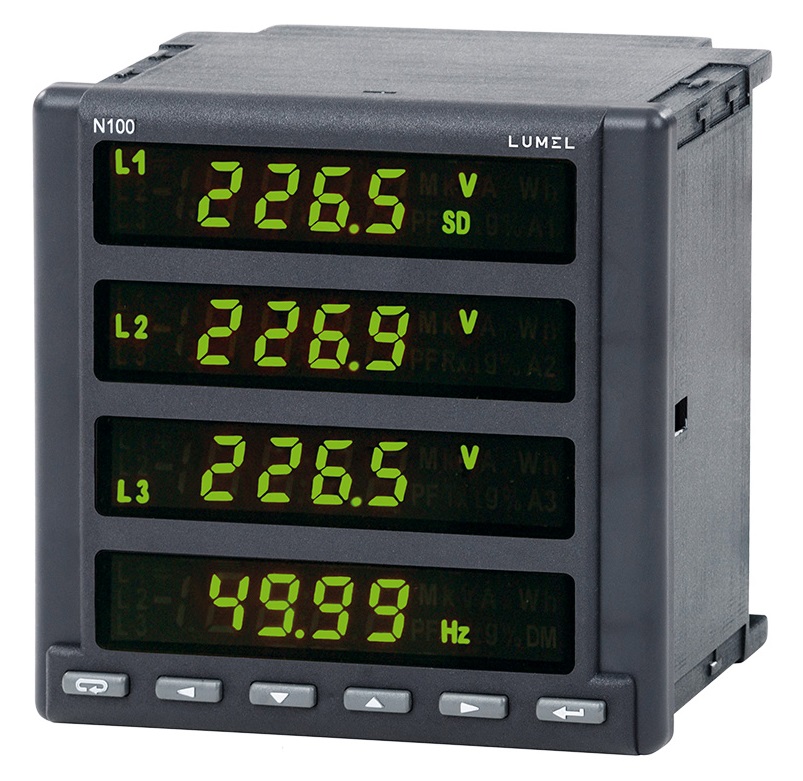

3-phase power network analyzer with Ethernet and recording

N100

N100 - it is a successor of N10 meters - one of the most popular meters on the market. N100 has been enhanced with new functions (ETHERNET and RECORDING), which is adjusted its to energy monitoring requirements in modern industrial applications.

  • Measurement of
    • power network parameters in 3 or 4-wire, balanced or unbalanced systems
    • harmonics up to 51st
    • THD.
  • Two-color LED display (red, green).
  • Four quadrant energy measurement.
  • Indications taking into consideration programmed ratio values.
  • Programmable number of pages and selection of displayed quantities on each of the 20 pages.
  • Backlight units of all measured quantities.
  • Configurable analog and alarm outputs.
  • Pulse input to count the consumption of active energy from external counter.
  • Digital RS-485 interface with MODBUS protocol.

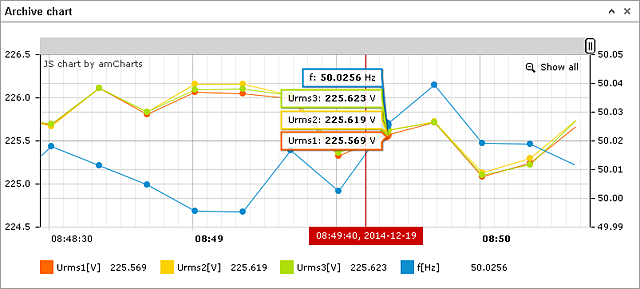

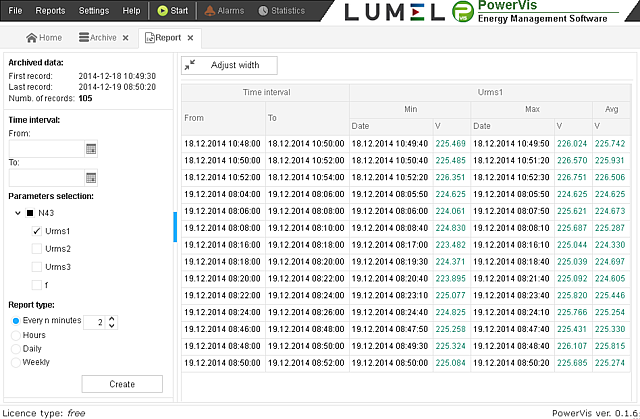

  • Archiving data in the internal memory file system, memory 8 GB (optional).
  • Ethernet interface 10/100 BASE-T (optional)
    • protocol: MODBUS TCP/IP, HTTP, FTP,
    • services: www server, ftp server, DHCP client.
  • Battery support of RTC.
  • External dimensions: 144 x 144 x 77mm.
