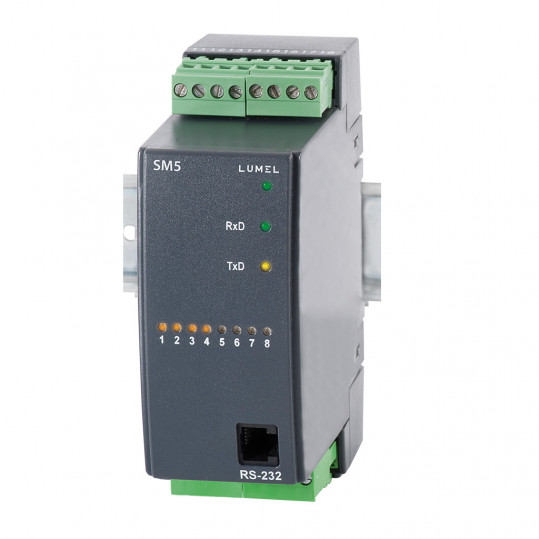

8-channels module of logic inputs


The SM5 module of logic inputs is destined to collect logic states of inputs and make them available to computerized systems working on the base of RS-485 interface.

Prices / An inquiry

Go to partner zone

Buy in store

SM5 module has 8 logic inputs and RS-485 interface with MODBUS RTU and ASCII transmission protocols. Programming of the modules is possible using RS-485 or RS-232 interface and eCon software.
Module parameters:

  • 8 logic inputs,
  • RS-485 communication interface with MODBUS RTU and ASCII transmission protocols to operate in computerized systems,
  • configurable baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bits/s,
  • programming interface on the frontal plate of RJ type (RS232).
  • external dimensions:  45 x 120 x 100mm.
