- 5-digit LED display, digits of 14 mm high,
- Possible configuration of parameters through the PD14 programmer and the free eCon software,
- precision of displayed results (decimal point),
- measurement averaging time,
- recounting of indications (individual characteristic),
- automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N25T),
- Supply: 85…253 V a.c./d.c. or 20…24 V a.c./d.c., 110 V a.c., 230 V a.c.
- Protection grade: IP65
- Overall dimensions: 96 x 48 x 64 mm

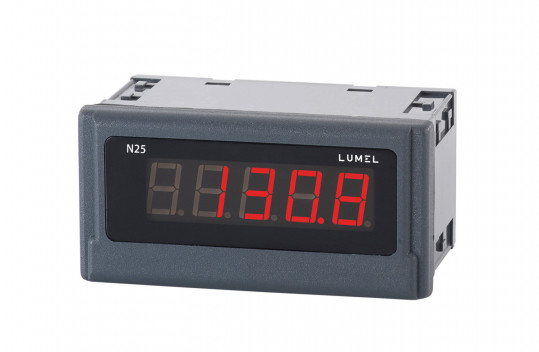

Configurable digital indicator
N25H, N25S, N25T, N25Z
Indicators of N25 series are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current. Thanks to a competitive price, they are ideal in solutions for low-budget applications.
