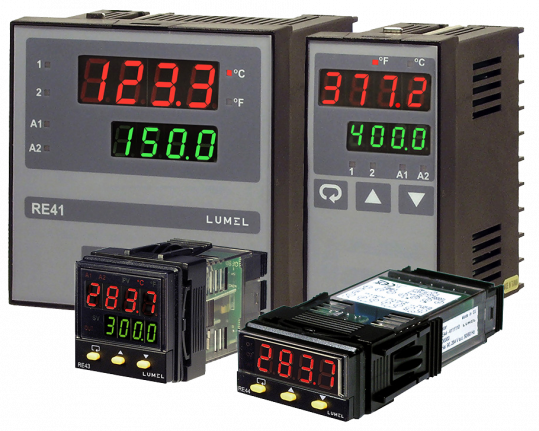

PID-Fuzzy Logic Controllers

RE41, RE42, RE43, RE44

Na magazynie

The RE4x series process controllers are distinguished by the innovative PID & Fuzzy Logic algorithm. This allows the setpoint to be reached in the shortest time with a minimum overshoot during warm-up or during external interference. The variety of built-in functions enables the use of these controllers in demanding control processes.

Net price from: 180.00 EUR

Prices / An inquiry

Go to partner zone

  • sampling rate (5 times/second),
  • two menu configurations - basic and extended,
  • configurable user menu,
  • pump control,
  • PID control + fuzzy-logic,
  • control of the difference of signals from two inputs,
  • self-tuning,
  • sleep function,
  • soft start,
  • universal input,
  • analog input for standard signals and current transformers
  • binary input for changing the function of the controller and SP switching,
  • programmable digital filter,
  • hardware and software security before changing settings,
  • alarm for breaking the control loop,
  • heater burnout alarm,
  • sensor break detection,
  • interface RS-485,
  • analog retransmission,
  • power supply of object converters,
  • a large variety of control outputs.

External dimensions

  • RE41 - 96 x 96 x 65mm
  • RE42 - 48 x 96 x 80mm
  • RE43 - 50,7 x 50,7 x 88,5mm
  • RE44 - 50 x 26,5 x 110,5mm

Check part numbers/executions available in the stock
