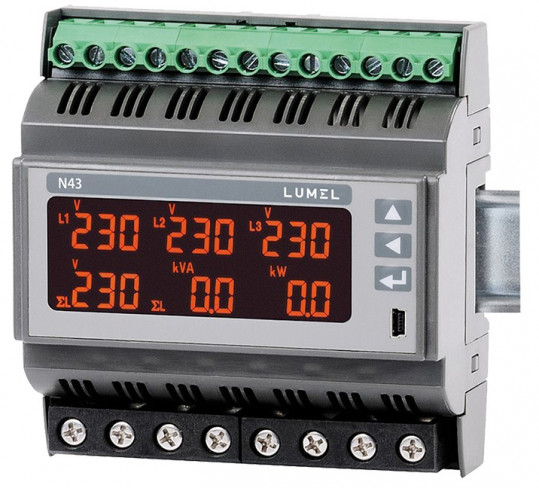

Rail mounted 3-phase power network meter

N43

Destined for direct (up to 63A) and indirect measurements in 3 phase 4 wire/3 wire balanced and unbalanced systems.

  • the measurement of:
    • rms values of voltage and current,
    • active, reactive and apparent power,
    • active, reactive energy,
    • power factors,
    • frequency
    • THD
  • indications considering values of programmed ratios,
  • programmable current and voltage ratios,
  • 12 programmable screens/pages,
  • backlit LCD display,
  • digital transmission to the master system through the RS-485 interface with Modbus protocol,
  • configurable alarm outputs,
  • the pulse output for monitoring of 3-phase active energy,
  • analog outputs are available by connecting S4AO module,
  • USB for configuration by using free eCon software,
  • implemented function for software updating,
  • modern design allows for installation of the meter in modular switchgear in accordance with EN 62208 (meter has a width of 6 modules) on 35 mm rail,
  • external dimensions: 105 x 110 x 60mm.
  • Check part numbers/executions available in the stock
