NR30PNET

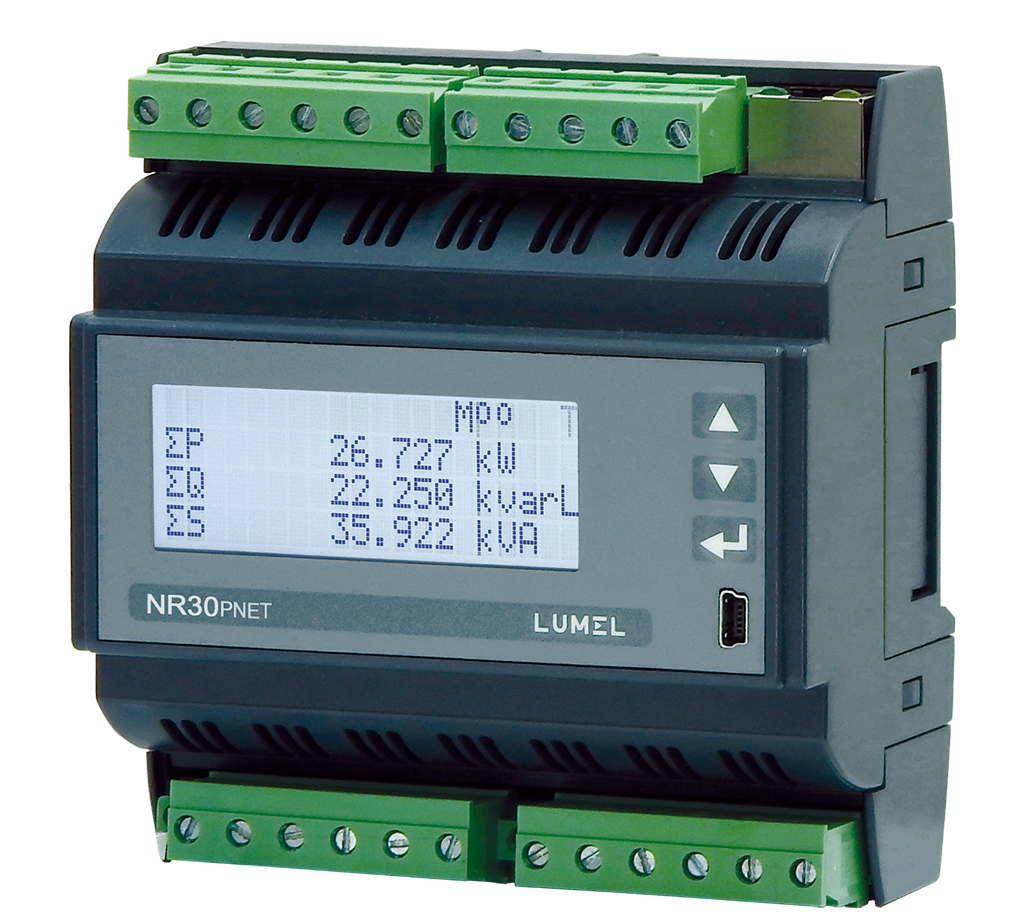

Rail mounted 3-phase power network meter with Profinet for PLC applications

NEW
Configure / An inquiry

Price / Go to partner zone

Destined for direct (up to 63A) and indirect measurements in 3 phase 4 wire/3 wire balanced and unbalanced systems.

  • Measurement and recording of 54 power network parameters in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
  • Harmonics up to 51st for current and voltage
  • Baclit LCD screen, fully configurable by a user
    • 22 pages, 3 parameters in each
    • 1 page with harmonics presentation
  • Indications include the values of programmed ratios
  • Memory of minimum and maximum values.
  • 2 configurable alarm outputs.
  • Optional: with additional module of analog outputs - S4AO type (4 current or voltage outputs)
  • RS-485 digital output - MODBUS protocole

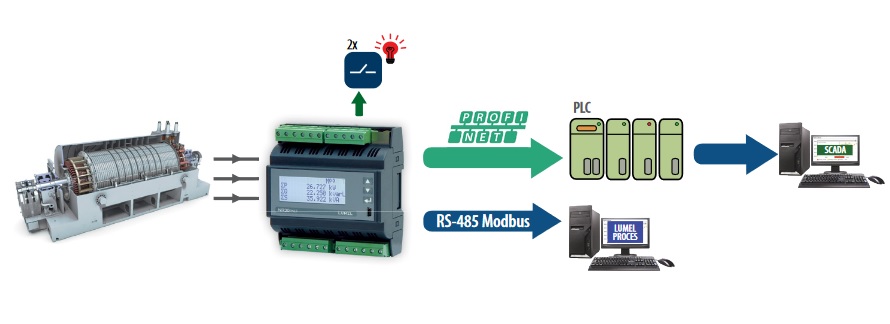

  • Modern and user-friendly Ethernet / interface Profinet 2.2
  • Wide range of voltage supply
    • 85..253 V a.c. or 90..300 V d.c.
    • 20..40 V a.c or 20..60 V d.c.
  • Programming of parameters using free eCon software.
  • Battery backup RTC.
  • Modern design allows for installation of the meter in modular switchgear in accordance with EN 62208 (meter has a width of 6 modules) on 35 mm rail,
  • External dimensions: 105 x 110 x 60mm.
