System for visualization and control of the technological process in 20 heating pits.

Main features of the system are as follow:

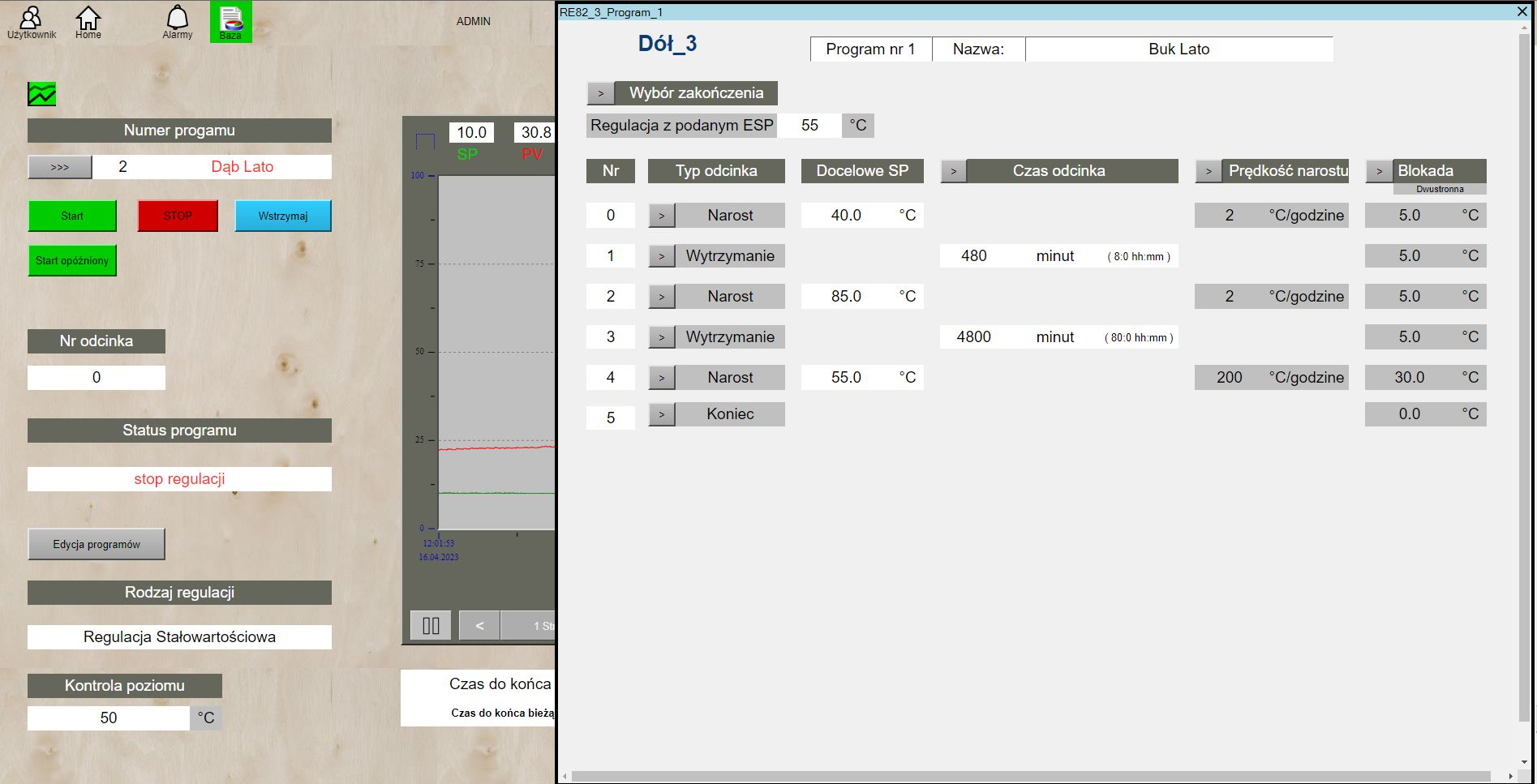

✅ remote editing of individual RE82 controllers programs (holding time, thermal ramp time, holding temperature, edition for 15 segments),
✅ control of the production process,
✅ timely planning the start of production in a given pit

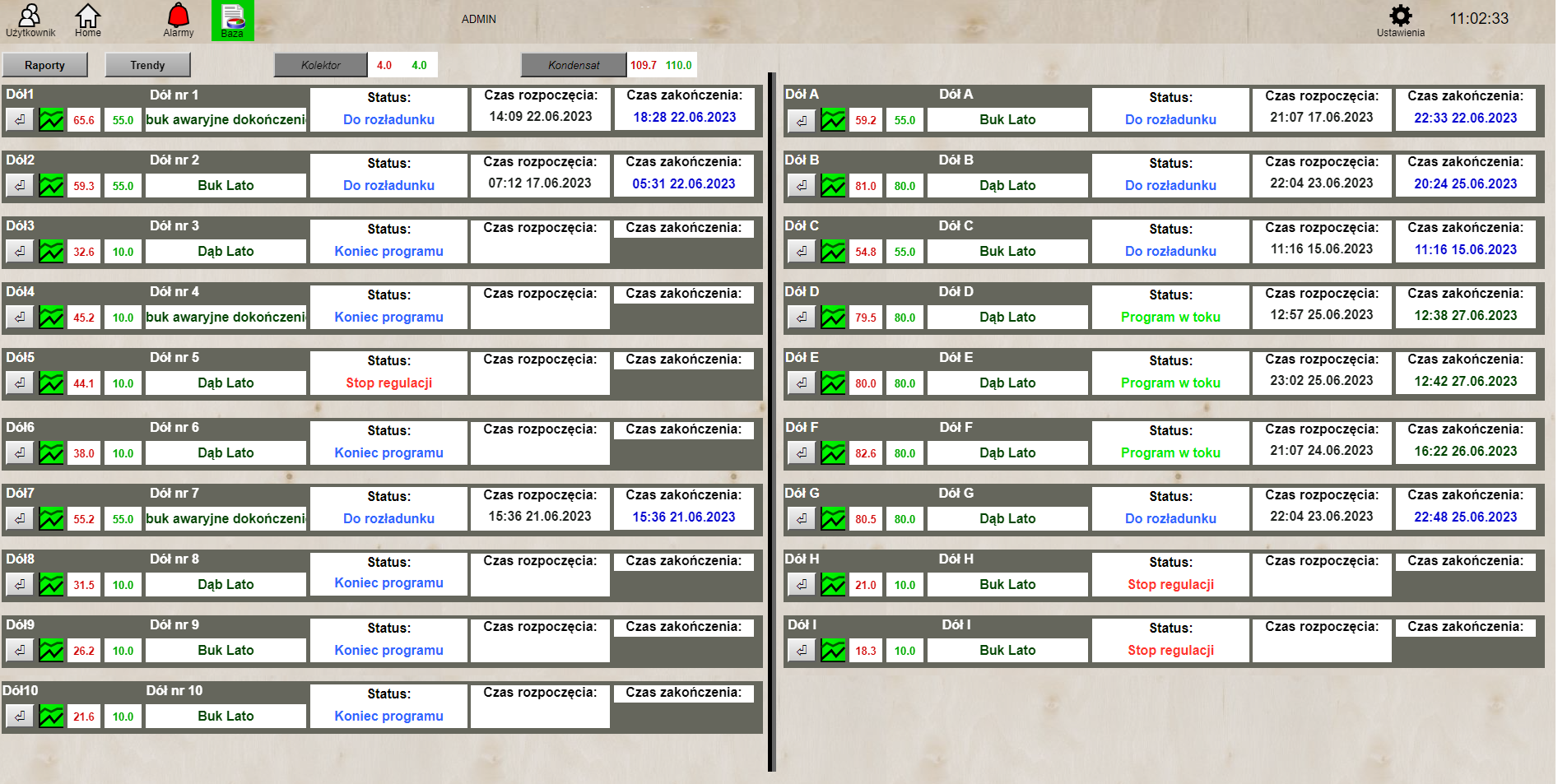

✅ clear visualization of start and end times for all heating pits

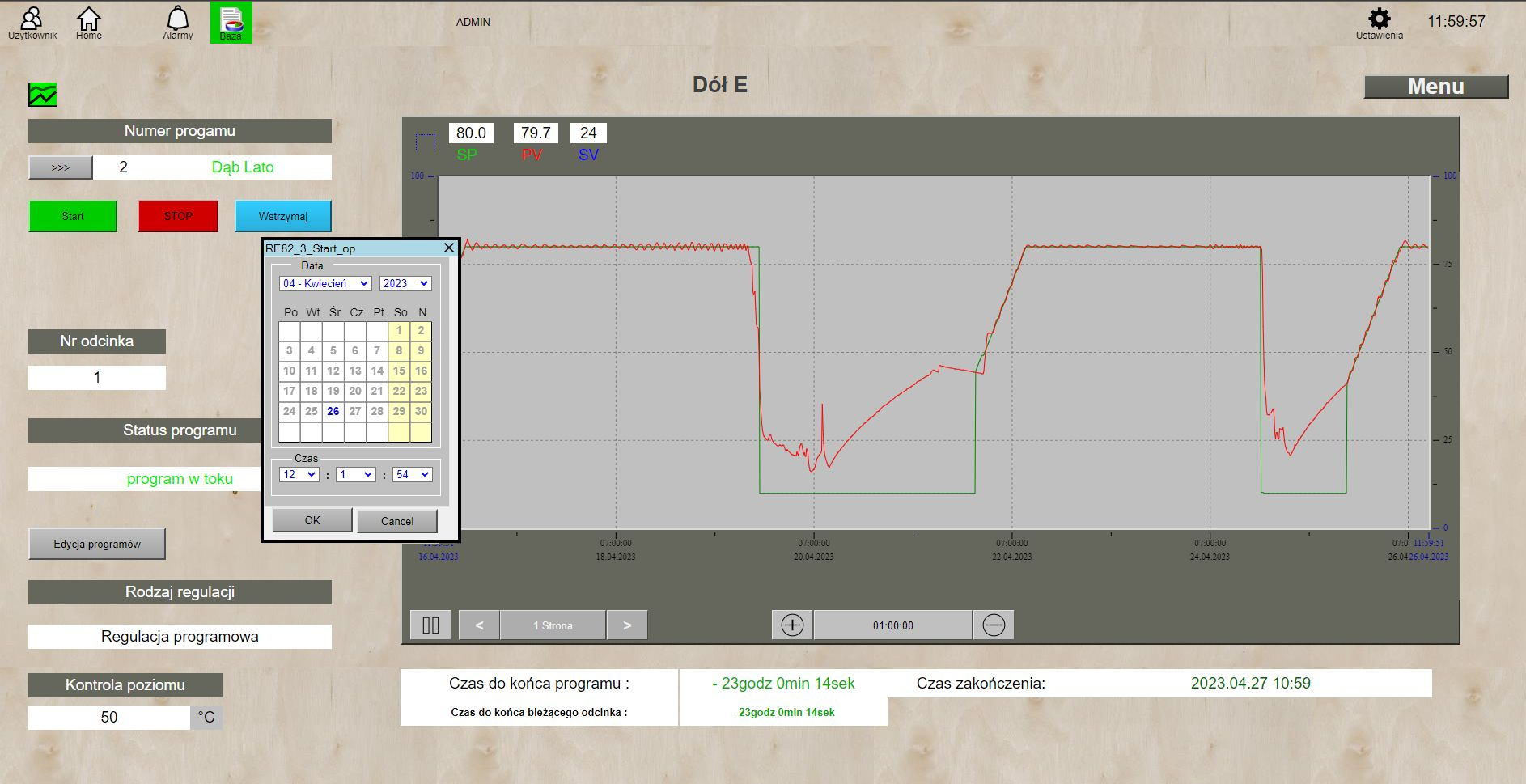

✅ monitoring of the status of the program in a given pit along with the control of unloading the given charge
✅ archiving in the client's SQL database and reporting of measured and set temperatures as well as controlling outputs in the form of trends and reports.

Go to partner zone

The application works in the Windows service and, depending on the level of authorisation, is available to every user of the local network via the website.

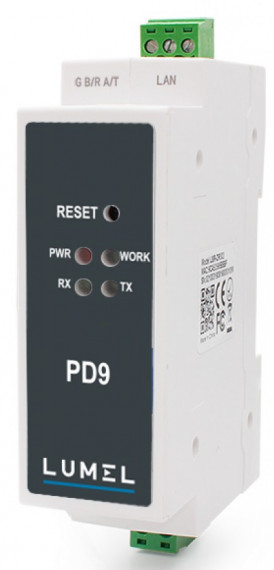

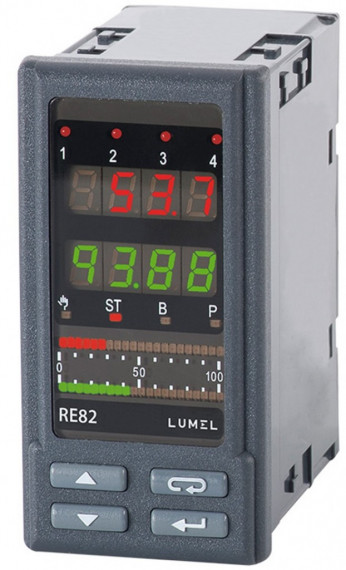

The system was implemented using Lumel's RE82 controllers, RS485/Ethernet PD9 converters and Promotic scada software with the use of over 40,000. variables.

The implementation was carried out in stages within the period of over 3 months without interrupting the production.
