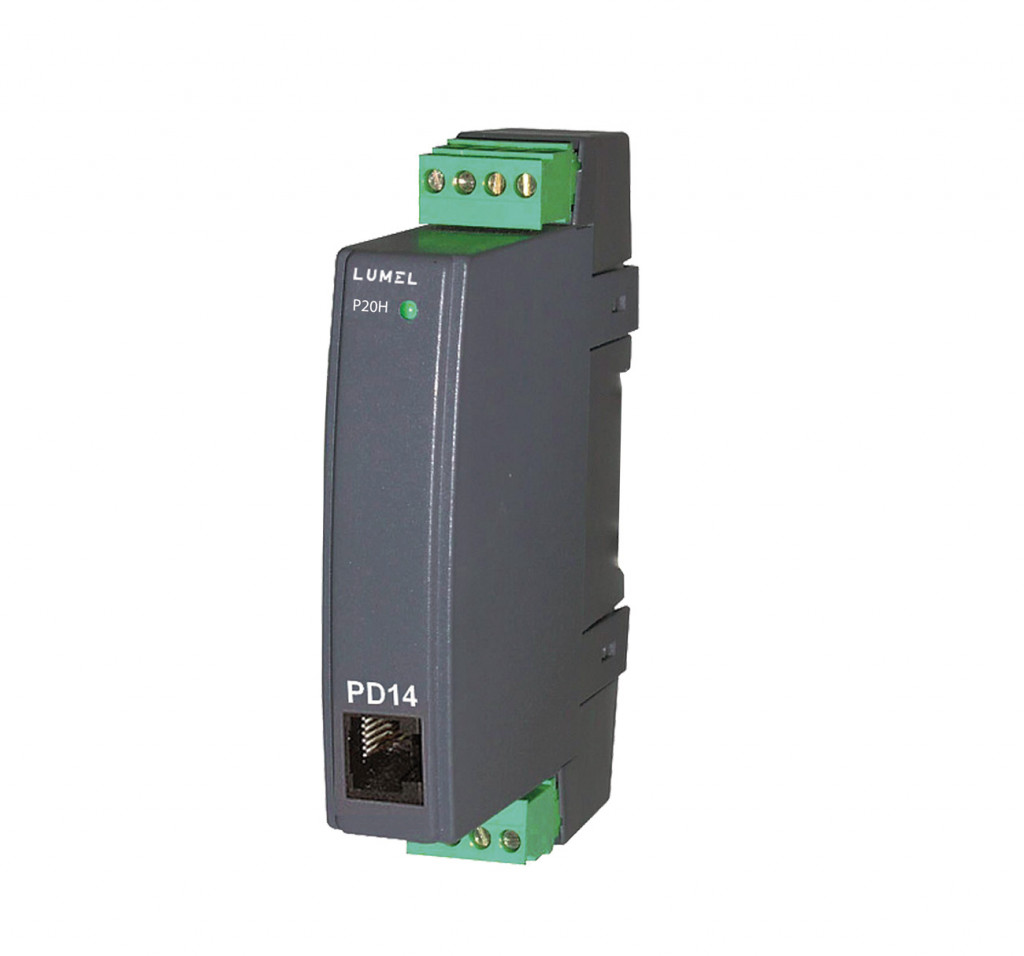

Transducer of d.c. voltage or current


Transducers of P20H types are applied for the continuous conversion of d.c. voltage and d.c. current into a standard d.c. current, d.c. voltage signal or RS-485 digital signal.

Prices / An inquiry

Go to partner zone

  • Input:
    •     -100…0…+100 V, -600…0…+600 V d.c.,
    •     -1…0…+1 A, -5…0…+5 A d.c.,
  • Output:: 0/4…20 mA, 0…10 V or RS-485 with MODBUS protocol.
  • Output signal galvanically isolated from the input signal and the supply.
  • Possible programming of following parameters through the PD14 programmer and the free eCon software.
    •    measurement averaging time,
    •    conversion characteristic,
    •    preservation of the output signal at overflows,
    •    transmission parameters through RS-485.
  • Possible rescalling of the analog output acc. to the individual output characteristic.
  • Accuracy class: 0.2
  • Supply voltage: 85…253 Va.c. (45…65 Hz) or d.c.20…40 Va.c. (45…65 Hz) or d.c.
  • Overall dimensions: 22.5 x 120 x 100 mm.
