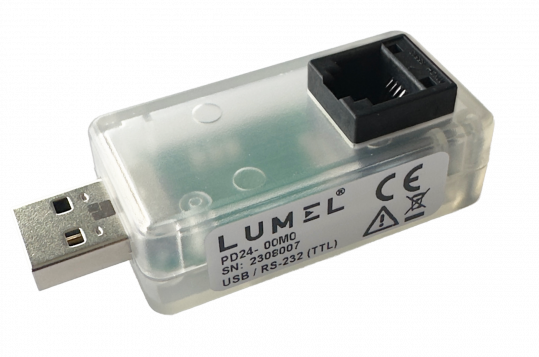

Converter of USB/RS232 (TTL) interface PD24


PD24 converter is destined for the conversion of USB interface into RS-232 (TTL) interface with TTL voltage levels. Moreover it’s the programmer for LUMEL products to configure settings using the free eCon software.
Prices / An inquiry

Go to partner zone

In PD24 converter are used 2 interfaces (USB, RS232) - galvanically isolated.

  • USB interface (type A) – destined for the device communication with the computer
  • RS-232 interface - destined for the communication with devices from the object side
  • compliance with the standard USB 1.1 and USB 2.0
  • data transmission rate up to 115,2 kbps
  • support virtual serial port (COM)
  • device supplied from USB port and from the RS-232 (TTL) side
  • set includes 1,5 m data transmission cable with RJ12 plugs to configure LUMEL products
  • external dimension: 62 x 25 x 20mm
